What are Leabon’s router bits and milling cutters made of?

Our router bits use TCT (tungsten carbide tipped) for everyday wood, MDF and plywood; PCD (polycrystalline diamond) bits for abrasive MDF and high-volume production; and TiAlN-coated solid tungsten steel for aluminum, titanium and magnesium. Pick TCT for general work, PCD for wear resistance, metal-grade carbide for non-ferrous metals.

How do I choose the right shank size and flute count?

Match the shank to your router or CNC spindle — common sizes are 3.175 mm, 6 mm, 8 mm, 12 mm and 1/4" to 1/2". Use 1–2 flutes for soft materials like acrylic and wood, 3 flutes for cleaner, faster cuts in panels, and 4 flutes (or ball-nose) for metal and fine finishes. All dimensions are listed on each product.

When should I replace a router bit or milling cutter?

Replace it when you see burn marks, tear-out, chatter, a visibly dull or chipped edge, or a drop in cut quality and feed speed. Carbide and PCD outlast HSS by many times; keep spares of your high-use profiles to avoid downtime.

Do you supply router bits for major CNC brands?

Yes. We supply OEM-grade router bits and milling cutters for mainstream CNC routers and machining centers, with custom shank sizes, flute counts and coatings available. Small mixed batches and made-to-drawing orders are supported for factories and workshops.

Filter

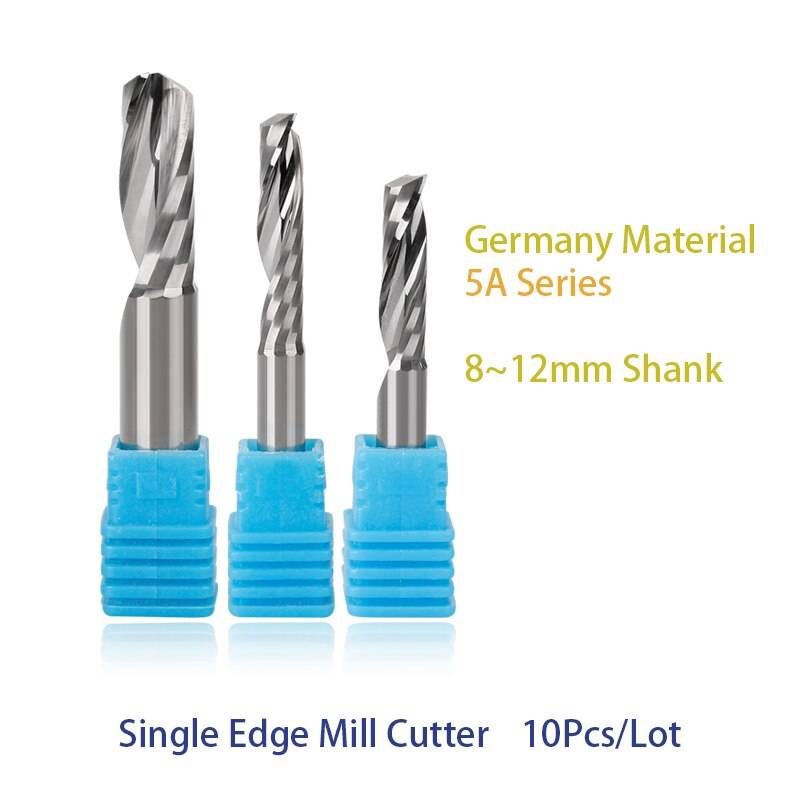

8/10/12mm Shank 1-Edge Spiral End Mill ABS Acrylic

Leabon single-edge spiral end mill with 8, 10 and 12 mm shanks in Germany-grade material, for cutting ABS, acrylic and plastic sheet on CNC routers. The single flute lifts chips clear of the cut and keeps heat down when machining plastics, so the cut edge stays clean without melting. Sold 10 pcs per box; other lengths available.

Features and Applicable Machines and Tools:

This page shows only our Top quality Germany Material 8mm 10mm 12mm diameter shank series milling cutters, you can also visit our Milling Cutter Category for more other specifications.

Package: 10pcs/box. Above price is for 1 package, 10pcs.

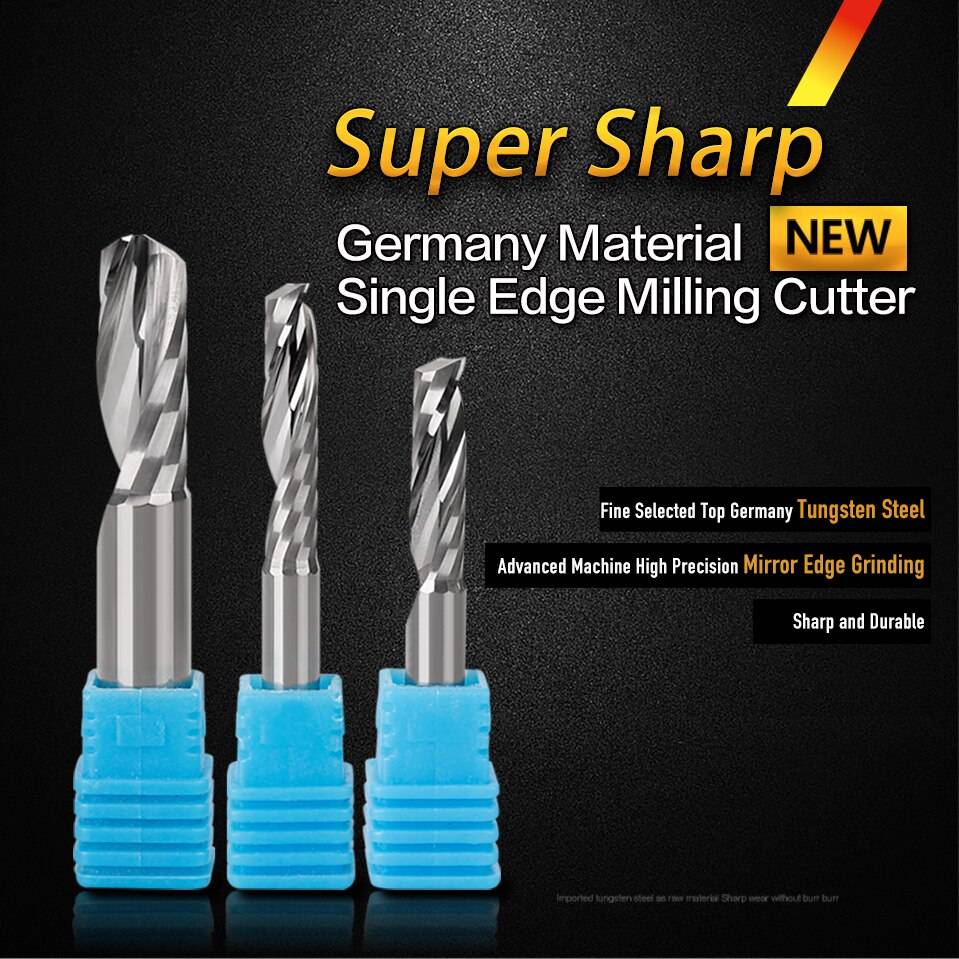

1. Premium German tungsten steel material.

2. Wear-resistant, with low material build-up on the cutter

3. Cutting edges mirror-ground on advanced machinery.

4. High chip-evacuation efficiency.

5. An all-new cutting-edge geometry breaks

through the limits of conventional cutter designs and is

noticeably sharper.

6. Endurance-tested over ten thousand cycles to guarantee edge sharpness and resistance to chipping.

7. Threads machined to tighter tolerance than the original specification, giving a precisely matched spiral and a smoother up-cut / down-cut action.

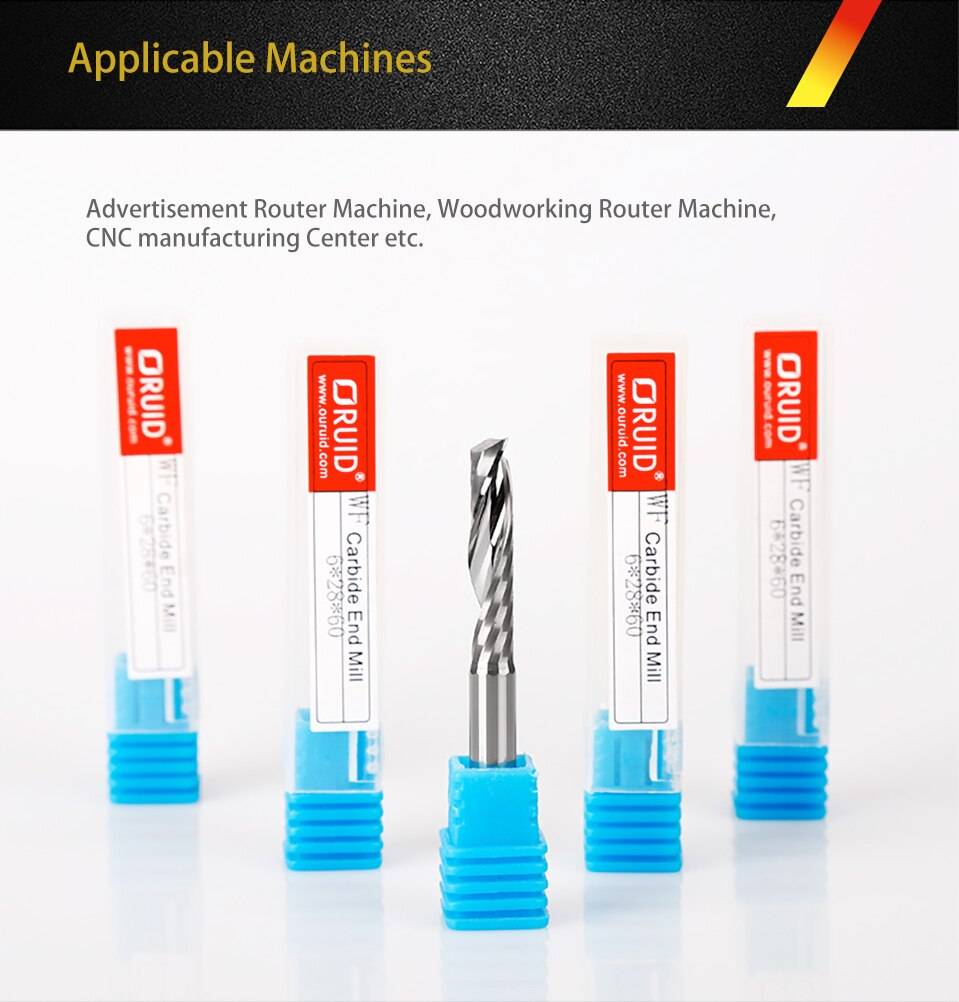

It can be used in advertising routers, woodworking routers, CNC machining centres, hand routers, etc.

Frequently Asked Questions

Which workpieces is this suitable for?

This page shows only our Top quality Germany Material 8mm 10mm 12mm diameter shank series milling cutters, you can also visit our Milling Cutter Category for more other specifications. Package: 10pcs/box. Above price is for 1 package, 10pcs. 1. Premium German tungsten steel….

What are the main benefits of this tool?

Key point: Premium German tungsten steel material.

What size is this offered in?

This item is offered in 10/12 mm; other sizes can be supplied on request.

Which materials can this cutter be used on?

Suitable workpiece materials: acrylic.

What cutting geometry does this tool use?

Geometry: spiral. Choose the geometry to match the cut you need – the product name states the profile supplied.

Weight	0.3 kg

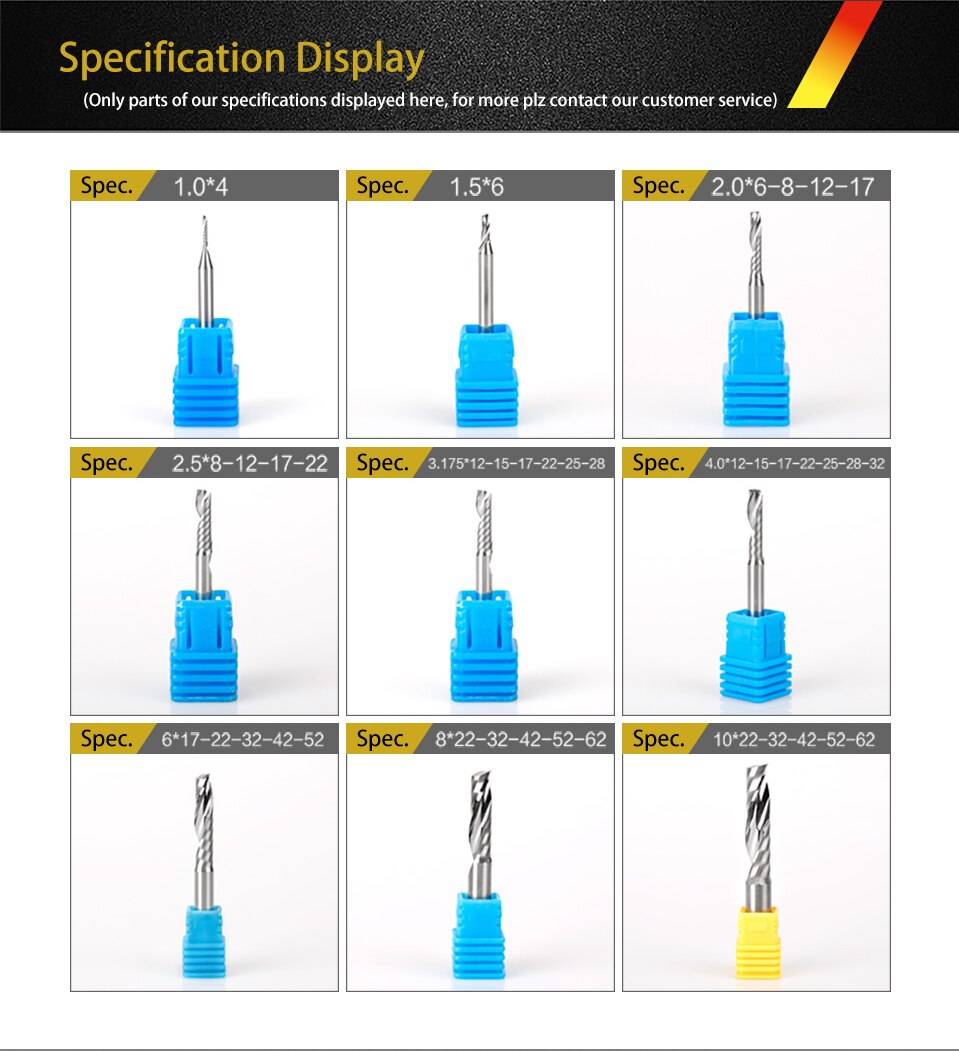

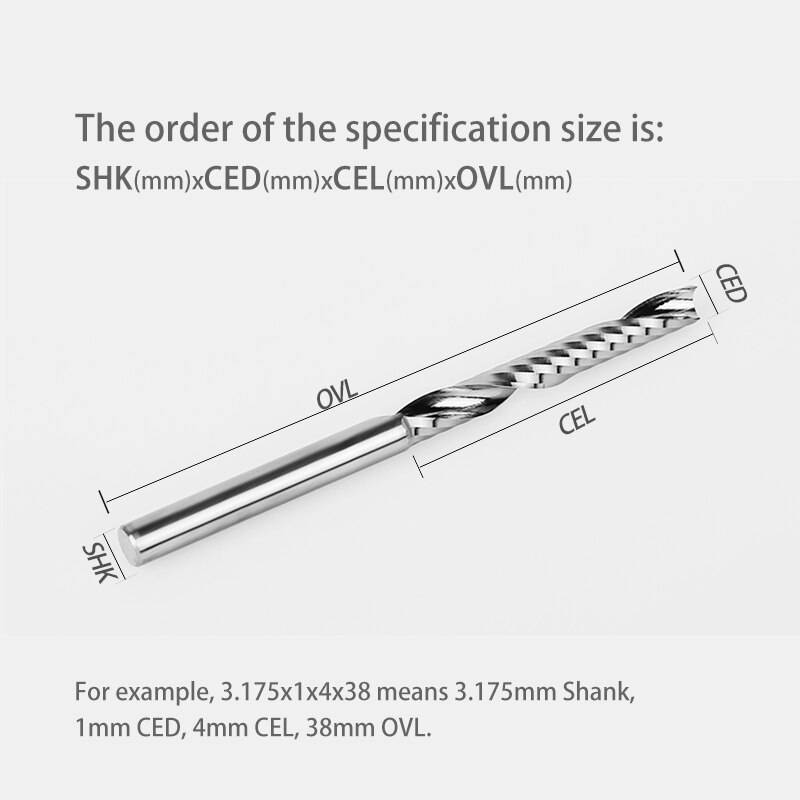

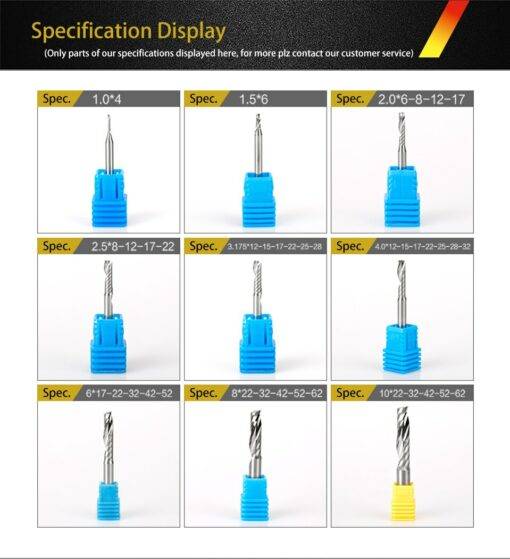

Dimensions	8x8x22x50mm, 8x8x25x50mm, 8x8x32x60mm, 8x8x42x70mm, 8x8x52x80mm, 10x10x32x60mm, 12x12x32x75mm
Origin	CN(Origin)
Type	Thread Mills
Overall Length	50mm~80mm
Model Number	mc0385a~mc0445a
Diameter	8mm 10mm 12mm
Coating	none
Material	Carbide
Degree	R0.1
