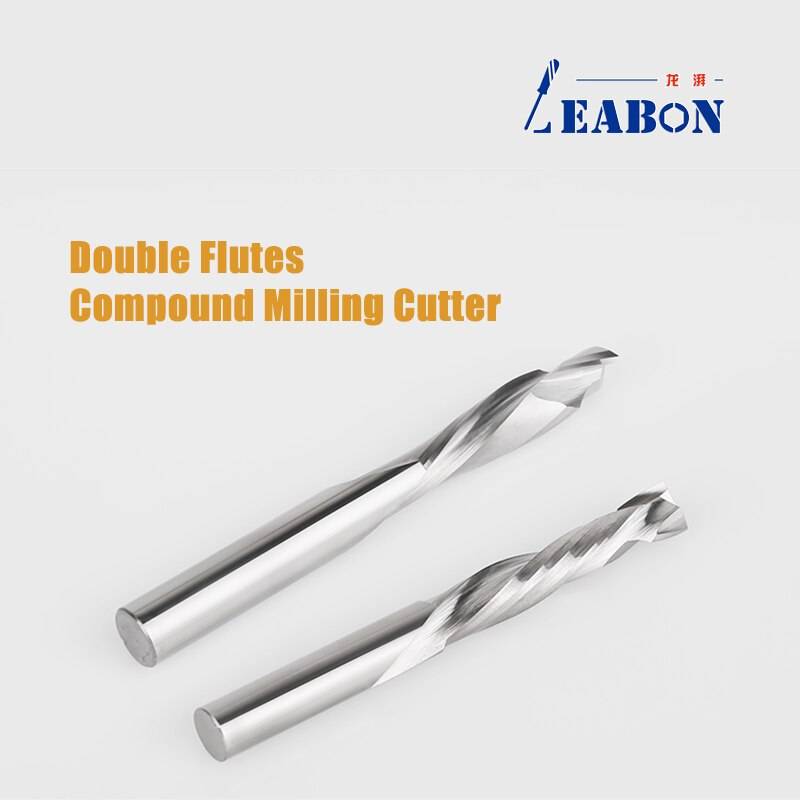

Double Edges Compound Milling Cutter Carpentry Tool 4mm to 12.7mm Shank Imported Tungsten Steel for MDF Plywood Melamine Board

Features and Applicable Machines and Tools:

This page shows our double flutes compound milling cutter, you can also visit our Milling Cutter Category for more other specifications.

Package: 1pc/box. Above price is for 1 package, 1pc.

1.Top imported tungsten steel material.

2.Wear-resisting and not easy to stick to mill cutter

3.The cutting bit processed by mirror grinding procedure through avanced machine.

4.High efficiency of chip evaluation.

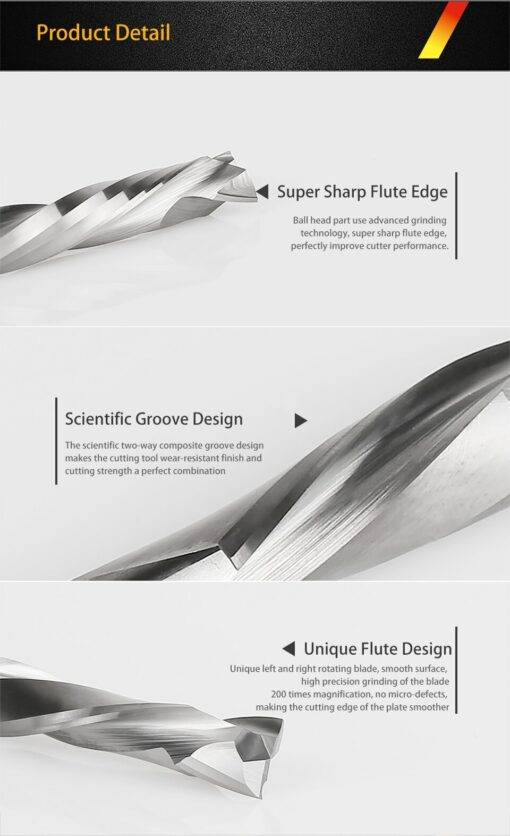

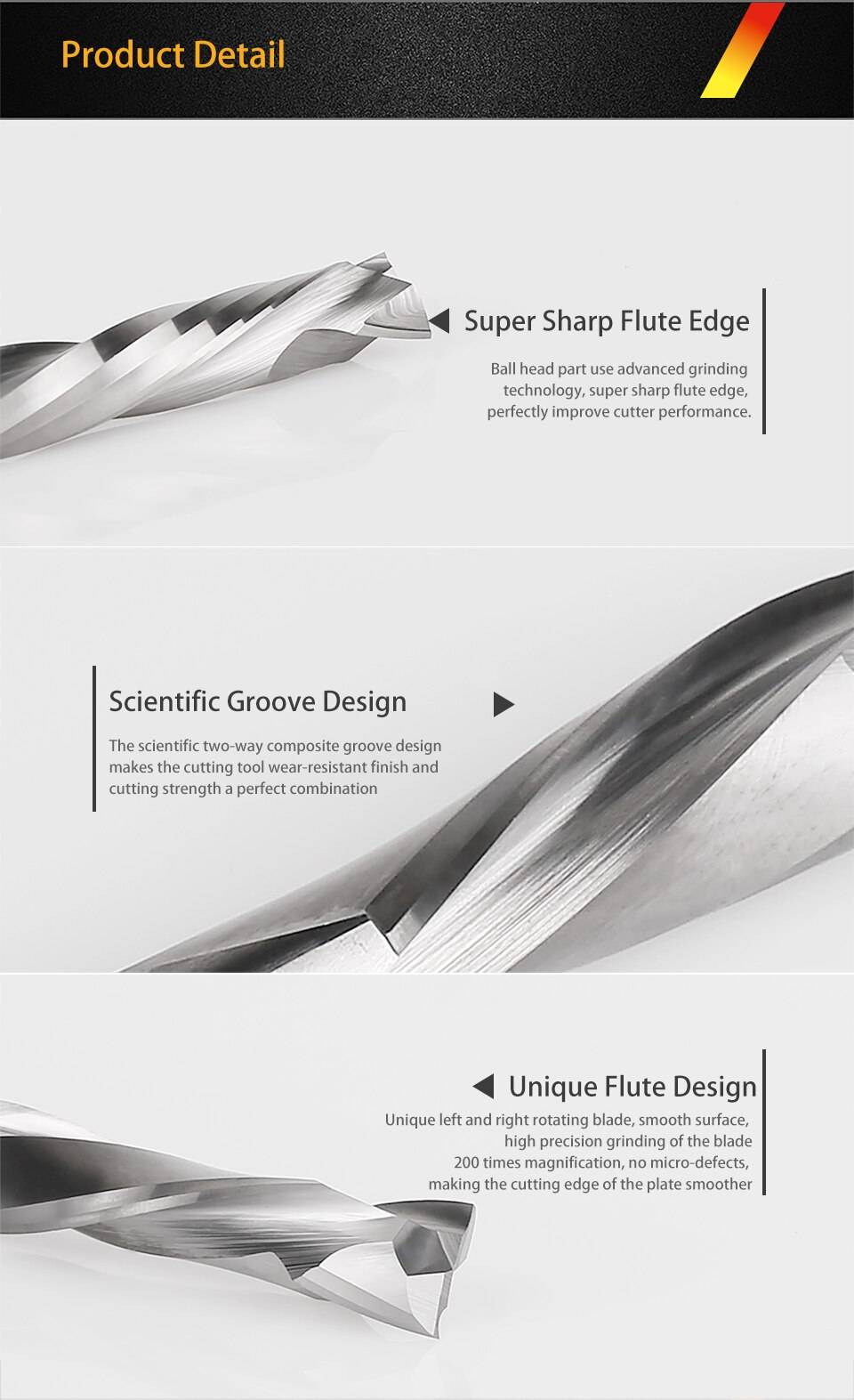

5.Completely new cutting edge design breaks

through the original limit of the cutter and is

much more sharper.

6. Passed ten thousand tests to ensure the sharpness and never chipped.

7.We tested more finely on the original precision thread. Perfect spiral precision scheme, smoother up and down cutter.

It can be used in Adverstisement Router Machine, Woodworking Router Machine, CNC manufacturing Center, Hand Router etc.

This tool adopts the company’s unique sharpening technology, and has developed an advanced cutting edge passivation process, which makes the surface of the tool not very sharp, but the actual processing is extremely sharp, and more wear-resistant and durable. Not only the processed products are more beautiful, but also Greatly increase the service life of the tool, so it saves more enterprise costs. This technology company has applied for a patent.

Cutter application: dedicated to cuttingplexiglass, plastic board and solid wood board, MDF, MDF, particleboard multilayer board and other engraving processing.

Features: sharp cutting tools, low processing noise, the feed speed can reach 6 m/min when cutting 15mm plexiglass.

Cutting effect: smooth cutting surface, no knife marks, no welds, no cracks, no crease marks on the curve section.

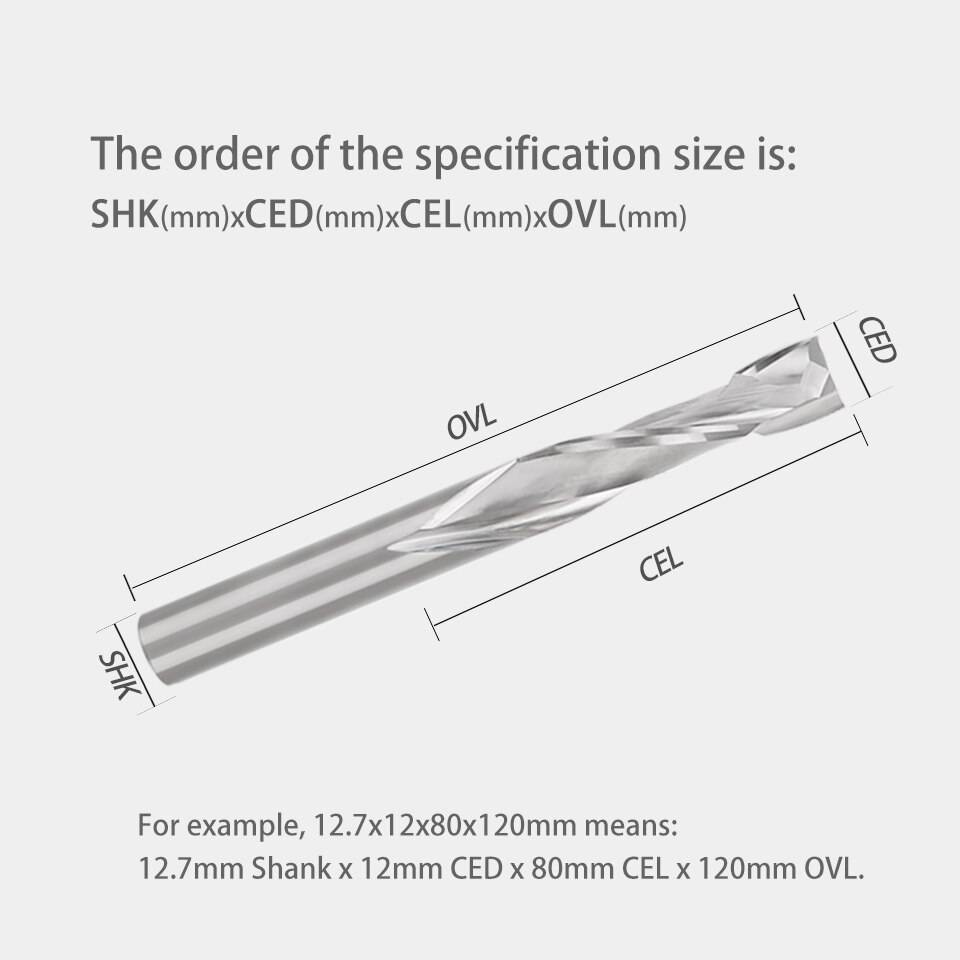

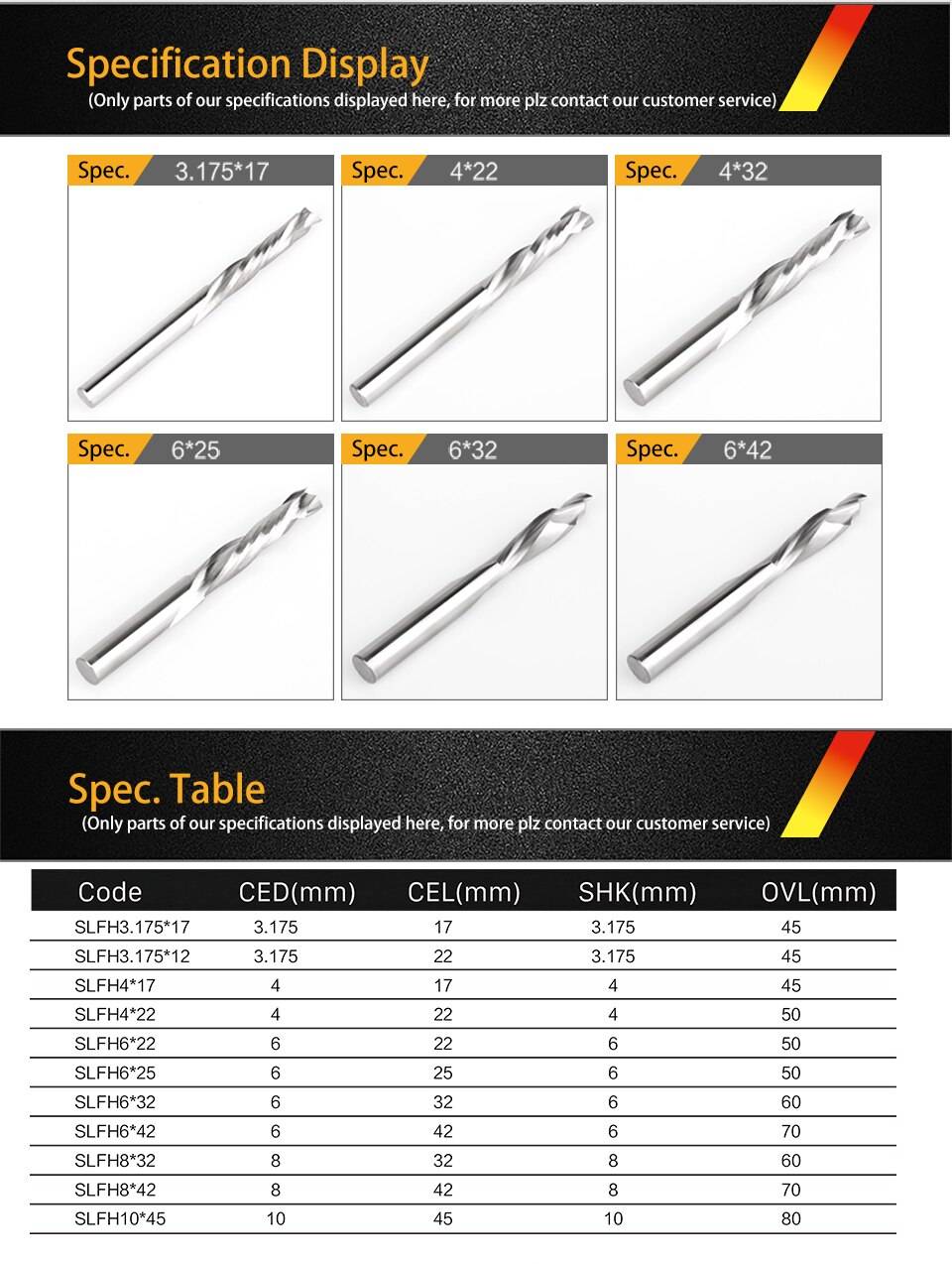

Tool specifications: ①The diameter of the cutter shank is 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm.

②The diameter of the cutter is Φ4, Φ6, Φ8. Φ10, Φ12, Φ12.7,Φ16 etc.

③The cutting edge length is 8mm, 10mm, 12mm, 15mm, 17mm, 22mm, 32mm, 42mm, 52mm, 62mm.

④ Tool length 50mm, 70mm, 75mm, 100mm, 120mm etc.
