Features and Applicable Machines and Tools:
This page shows our Four cutting edges metal milling cutter with Tiain coating, you can also visit our Milling Cutter Category for more other specifications.
1.Top imported tungsten steel material.
2.Wear-resisting and not easy to stick to mill cutter
3.The cutting bit processed by mirror grinding procedure through avanced machine.
4.High efficiency of chip evaluation.
5.Completely new cutting edge design breaks through the original limit of the cutter and is much more sharper.
6. Passed ten thousand tests to ensure the sharpness and never chipped.
7.We tested more finely on the original precision thread. Perfect spiral precision scheme, smoother up and down cutter.

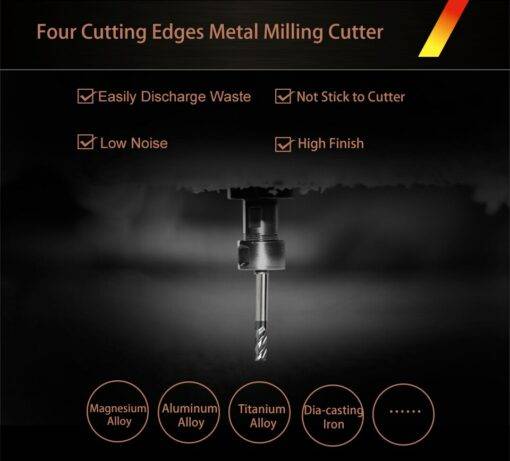

It can be used in Adverstisement Router Machine, Woodworking Router Machine, CNC manufacturing Center, Hand Router etc. and it can process various metal products such as aluminum, magnesium, titanium alloy plate, dia-casting iron etc.
| Weight | 0.1 kg |
|---|---|

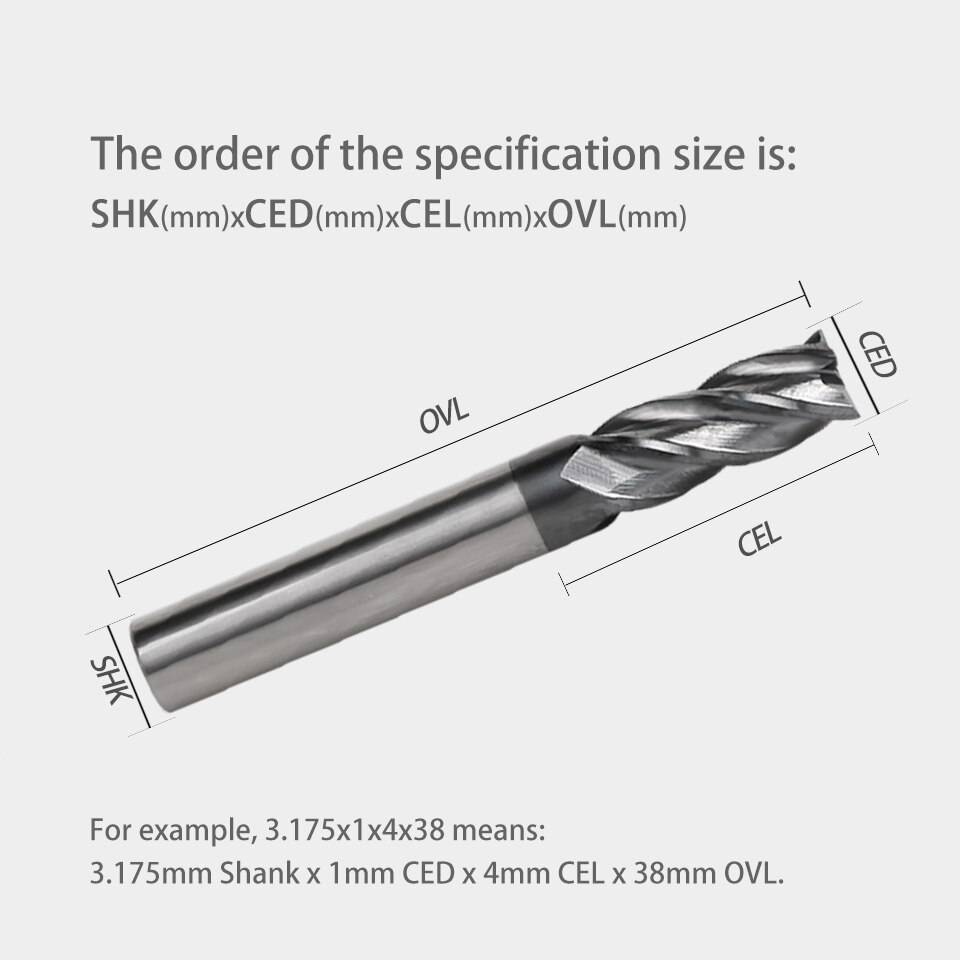

| Dimensions | 1.0×1.0x3x50mm, 1.5×1.5x4x50mm, 2.0×2.0x6x50mm, 2.5×2.5x8x50mm, 3.0×3.0x8x50mm, 4x4x10x50mm, 4x4x20x75mm, 4x4x25x100mm, 5x5x13x50mm, 6x6x15x50mm, 6x6x20x75mm, 6x6x30x100mm, 8x8x20x60mm, 8x8x25x75mm, 8x8x35x100mm, 10x10x25x75mm, 10x10x40x100mm, 12x12x30x75mm, 12x12x45x100mm, 14x14x35x80mm, 14x14x40x100mm, 16x16x40x100mm, 18x18x40x100mm, 20x20x40x100mm, 6x6x30x150mm, 8x8x40x150mm, 10x10x45x150mm, 12x12x50x150mm, 14x14x50x150mm, 16x16x55x150mm, 20x20x55x150mm |
| Cutting Edge Diameter | HRC45-50, HRC55-58, HRC65-68 |
| Origin | CN(Origin) |
| Type | Thread Mills |
| Overall Length | 50~150mm |
| Model Number | 1.0*3*50~20*55*150 |
| Diameter | 1~20mm |
| Coating | TiAIN |
| Material | Carbide |
| Degree | R0.1 |
| Quantity | 1 piece |
