What are Leabon’s router bits and milling cutters made of?

Our router bits use TCT (tungsten carbide tipped) for everyday wood, MDF and plywood; PCD (polycrystalline diamond) bits for abrasive MDF and high-volume production; and TiAlN-coated solid tungsten steel for aluminum, titanium and magnesium. Pick TCT for general work, PCD for wear resistance, metal-grade carbide for non-ferrous metals.

How do I choose the right shank size and flute count?

Match the shank to your router or CNC spindle — common sizes are 3.175 mm, 6 mm, 8 mm, 12 mm and 1/4" to 1/2". Use 1–2 flutes for soft materials like acrylic and wood, 3 flutes for cleaner, faster cuts in panels, and 4 flutes (or ball-nose) for metal and fine finishes. All dimensions are listed on each product.

When should I replace a router bit or milling cutter?

Replace it when you see burn marks, tear-out, chatter, a visibly dull or chipped edge, or a drop in cut quality and feed speed. Carbide and PCD outlast HSS by many times; keep spares of your high-use profiles to avoid downtime.

Do you supply router bits for major CNC brands?

Yes. We supply OEM-grade router bits and milling cutters for mainstream CNC routers and machining centers, with custom shank sizes, flute counts and coatings available. Small mixed batches and made-to-drawing orders are supported for factories and workshops.

Filter

Milling-Cutter-For-Hand-Router-4mm-5mm-6mm

4-6mm Shank Single Edge Router Bit for Hand Router

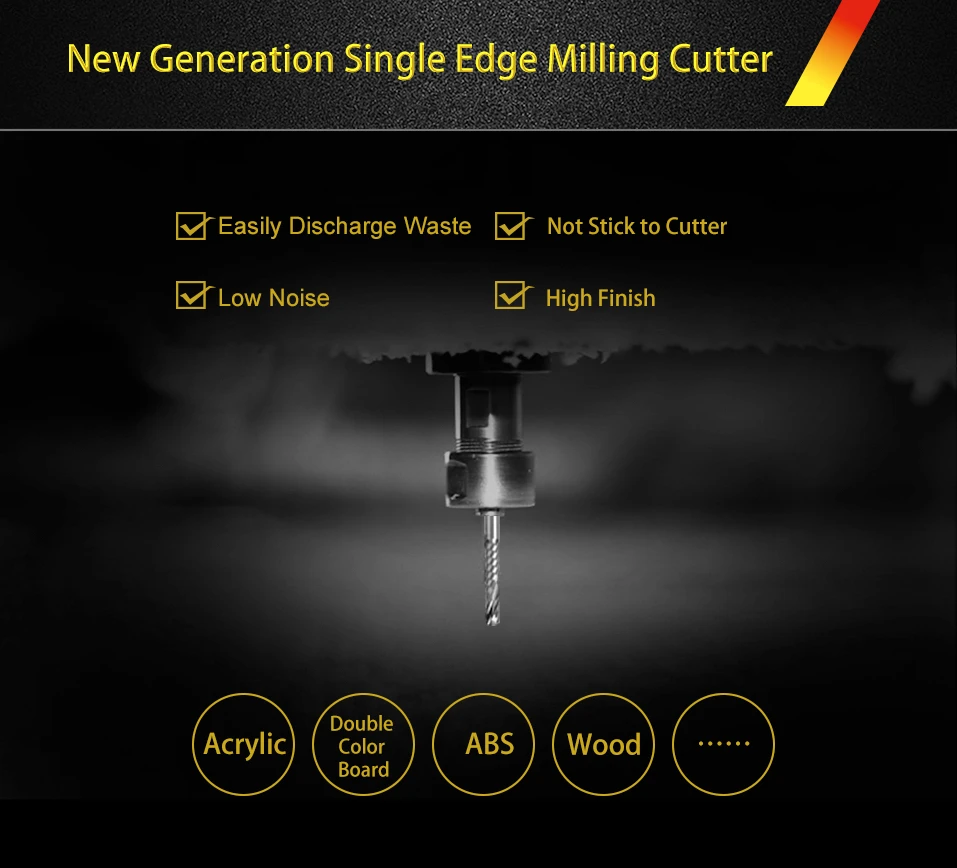

Leabon single-edge router bit with a 4 to 6 mm shank for hand-held routers and light CNC work. The single flute clears chips fast and eases the load on smaller routers, making it suitable for cutting grooves, trimming edges and shaping wood and MDF. Made from China top-grade material; supplied 1 pc per box.

Dimensions

Clear

Features and Applicable Machines and Tools:

This page shows only our 4-6mm diameter shank China Top Material series milling cutters, you can also visit our Milling Cutter Category for more other specifications.

Package: 1pc/box. Above price is for 1 package, 1pc.

1. Premium domestic tungsten steel material.

2. Wear-resistant, with low material build-up on the cutter

3. Cutting edges finished by mirror grinding.

4. High chip-evacuation efficiency.

5. An all-new cutting-edge geometry breaks

through the limits of conventional cutter designs and is

noticeably sharper.

6. Endurance-tested over ten thousand cycles to guarantee edge sharpness and resistance to chipping.

7. Threads machined to tighter tolerance than the original specification, giving a precisely matched spiral and a smoother up-cut / down-cut action.

It can be used in advertising routers, woodworking routers, CNC machining centres, hand routers, etc.and can mill ABS, Acrylic, Wood, MDF, Plywood etc. materials.

Frequently Asked Questions

Where is this normally used?

This page shows only our 4-6mm diameter shank China Top Material series milling cutters, you can also visit our Milling Cutter Category for more other specifications. Package: 1pc/box. Above price is for 1 package, 1pc. 1. Premium domestic tungsten steel material. 2.….

What is the standout feature of this product?

Key point: High chip-evacuation efficiency.

Which shank or cutting size is this?

This item is offered in 4-6 mm; other sizes can be supplied on request.

Can you make a custom size or OEM version?

Non-standard sizes, materials and OEM branding are accepted, produced to your drawing or sample. Sample and drawing orders are welcome.

How do I confirm the part fits before I buy?

Send your machine model or a clear photo of the part and we confirm the fit before shipment. We reply with a quotation within one business day.

Weight	0.05 kg
Dimensions	4x4x12x40mm, 4x4x15x40mm, 4x4x17x40mm, 4x4x22x45mm, 4x4x25x50mm, 4x4x28x55mm, 4x4x32x55mm, 5x5x17x45mm, 5x5x22x45mm, 5x5x25x50mm, 5x5x28x55mm, 5x5x32x60mm, 6x6x17x45mm, 6x6x22x45mm, 6x6x25x50mm, 6x6x28x55mm, 6x6x32x60mm, 6x6x42x70mm, 6x6x52x80mm, 6x6x62x100mm
Origin	CN(Origin)
Type	Thread Mills
Overall Length	40~100mm
Model Number	mc0018~mc0037
Diameter	4mm 5mm 6mm
Coating	none
Material	Carbide
Degree	R0.1
