What Is CNC Router Spindle Repair?
CNC router spindle repair is the process of inspecting, diagnosing, disassembling, and replacing damaged spindle parts to restore normal spindle performance. The purpose is to recover spindle accuracy, stable rotation, correct clamping force, and reliable cooling performance.
For many CNC routers, spindle repair is often more economical than complete replacement, especially when the spindle body is still in good condition and only some internal components are
Common Signs a CNC Router Spindle Needs Repair
A spindle usually gives warning signs before complete failure. Some of the most common symptoms include:
1. Abnormal Noise
Grinding sound, high-pitched noise, or unusual vibration during operation may indicate bearing wear, poor lubrication, or internal mechanical damage.
2. Spindle Overheating
If the spindle becomes too hot during use, possible causes may include damaged bearings, cooling problems, rotary joint leakage, or motor overload.
3. Poor Surface Finish
If the cutting surface becomes rough or inconsistent, the spindle may have runout, bearing wear, or unstable tool clamping.
4. Weak Tool Clamping
If the toolholder cannot be clamped firmly, the problem may come from the spindle gripper, drawbar, or disc springs. Weak clamping force may lead to tool slipping or unstable machining.
5. Unstable Speed
If spindle speed becomes unstable or the spindle loses power during cutting, the spindle motor, encoder, or control feedback system may need inspection.
Main Repair Parts for CNC Router Spindles
During CNC router spindle repair, several parts are commonly checked or replaced. These are some of the main repair parts.
Spindle Gripper
The spindle gripper is used to hold the toolholder securely inside the spindle. If the gripper is worn, damaged, or not working correctly, it may cause weak clamping force, tool slippage, or automatic tool change problems.

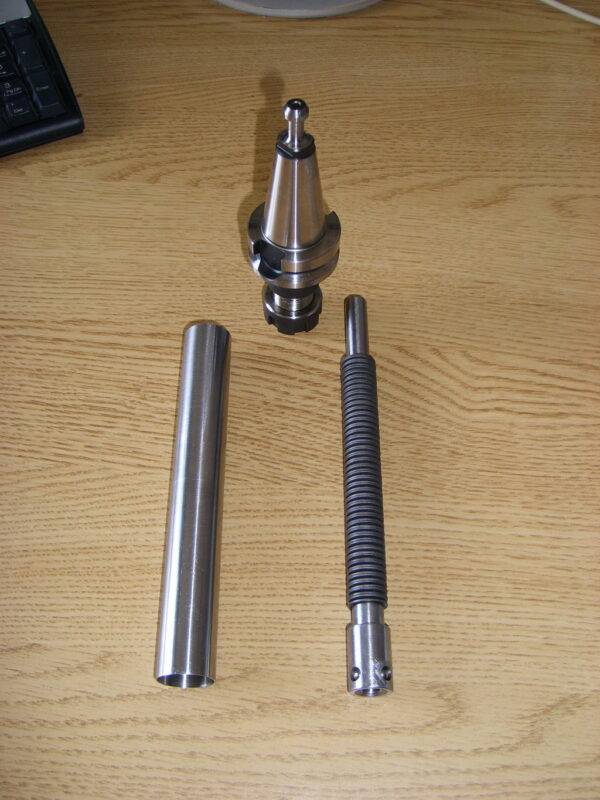

Spindle Drawbar
The drawbar transmits the pulling force required to clamp the toolholder. A worn or fatigued drawbar may reduce tool holding stability and affect machining safety and precision.
Disc Springs
Disc springs provide preload force in the spindle clamping system. Over time, they may lose elasticity, causing weaker clamping force and unstable tool holding.
Spindle Rotary Joint
The spindle rotary joint allows coolant or air to pass into the rotating spindle. If it leaks or loses sealing performance, the spindle may suffer from overheating, poor cooling, or internal contamination.
Spindle Motor
The spindle motor provides the rotational power needed for machining. If the motor fails, the spindle may show unstable speed, weak torque, or excessive heat.
Spindle Encoder
The spindle encoder provides speed and position feedback to the control system. Encoder failure may result in unstable spindle speed, poor control accuracy, or abnormal operation.

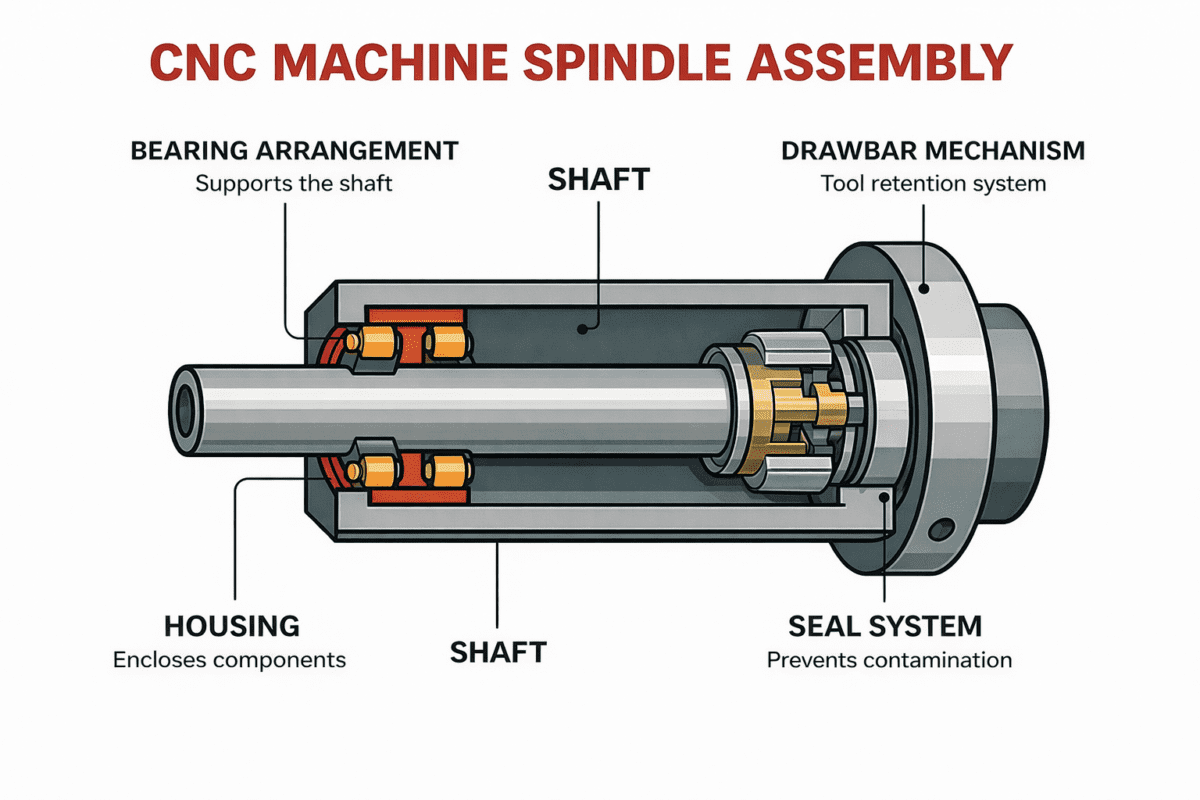

Spindle Bearings
Bearings are one of the most common repair parts in a spindle. Worn bearings may cause noise, vibration, heat, excessive runout, and lower machining accuracy.
Seals
Spindle seals protect the internal structure from coolant, dust, and debris. Damaged seals may allow contamination to enter the spindle and accelerate wear.
How to Diagnose CNC Router Spindle Problems
Before replacing parts, it is important to identify the actual problem. A simple diagnosis process may include:
Checking whether the spindle has abnormal sound or heat
Inspecting tool clamping performance
Measuring spindle runout
Checking for coolant or air leakage
Testing spindle speed feedback
Inspecting internal parts if necessary
Accurate diagnosis helps avoid unnecessary part replacement and improves repair efficiency.
Repair or Replace a CNC Router Spindle?
This is a common question for many users.
Spindle repair is usually a better choice when the main spindle body is still usable and the damage is limited to replaceable parts such as bearings, grippers, drawbars, disc springs, rotary joints, or encoders.
Replacement may be a better option when the spindle has severe internal damage, major motor failure, repeated repair history, or when repair cost is close to the price of a new spindle.
The best choice depends on spindle condition, repair cost, and downtime requirements.
How to Extend Spindle Service Life
Good maintenance can reduce spindle repair frequency and extend service life. Some practical suggestions include:
Use suitable cutting parameters
Avoid overload machining
Use correct and balanced toolholders
Maintain proper lubrication and cooling
Check clamping force regularly
Inspect seals and rotary joints in time
Replace worn parts before serious damage occurs
Preventive maintenance is often more economical than waiting for complete spindle failure.
.
This is a simple headline
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
What Information Is Needed to Identify CNC Router Spindle Repair Parts?
To identify suitable spindle repair parts, it is helpful to provide:
Spindle brand
Machine brand and model
Spindle model number
Toolholder type
Nameplate photo
Photos of damaged parts
Description of the failure symptoms
This information helps confirm compatibility and makes repair part selection more accurate.
FAQ
What are the most common CNC router spindle repair parts?
The most common spindle repair parts include bearings, grippers, drawbars, disc springs, rotary joints, encoders, and seals.
Can a CNC router spindle be repaired instead of replaced?
Yes. In many cases, a spindle can be repaired if the main body is still in good condition and only internal wear parts need replacement.
What causes weak tool clamping in a spindle?
Weak clamping force is often caused by worn grippers, damaged drawbars, or fatigued disc springs.
Is spindle overheating always caused by bearing failure?
No. Overheating may also be caused by cooling problems, rotary joint leakage, lubrication issues, motor overload, or contamination.
Conclusion
CNC router spindle repair is an important part of machine maintenance. Many spindle problems are related to worn repair parts such as bearings, grippers, drawbars, disc springs, rotary joints, encoders, and seals. Early diagnosis and correct part identification can help reduce downtime, improve machining stability, and avoid unnecessary replacement costs.
If your CNC router spindle shows signs of abnormal noise, overheating, vibration, weak tool clamping, or unstable speed, it is important to inspect the spindle in time and identify the right repair solution.
If you need help identifying CNC router spindle repair parts, preparing the spindle model, nameplate photo, and fault details will make selection easier and more accurate.
