What are Leabon’s router bits and milling cutters made of?

Our router bits use TCT (tungsten carbide tipped) for everyday wood, MDF and plywood; PCD (polycrystalline diamond) bits for abrasive MDF and high-volume production; and TiAlN-coated solid tungsten steel for aluminum, titanium and magnesium. Pick TCT for general work, PCD for wear resistance, metal-grade carbide for non-ferrous metals.

How do I choose the right shank size and flute count?

Match the shank to your router or CNC spindle — common sizes are 3.175 mm, 6 mm, 8 mm, 12 mm and 1/4" to 1/2". Use 1–2 flutes for soft materials like acrylic and wood, 3 flutes for cleaner, faster cuts in panels, and 4 flutes (or ball-nose) for metal and fine finishes. All dimensions are listed on each product.

When should I replace a router bit or milling cutter?

Replace it when you see burn marks, tear-out, chatter, a visibly dull or chipped edge, or a drop in cut quality and feed speed. Carbide and PCD outlast HSS by many times; keep spares of your high-use profiles to avoid downtime.

Do you supply router bits for major CNC brands?

Yes. We supply OEM-grade router bits and milling cutters for mainstream CNC routers and machining centers, with custom shank sizes, flute counts and coatings available. Small mixed batches and made-to-drawing orders are supported for factories and workshops.

Filter

Double-Cutting-Edges-Spiral-Router-Tool-Bit-Milling-Cutter-Imported-Material

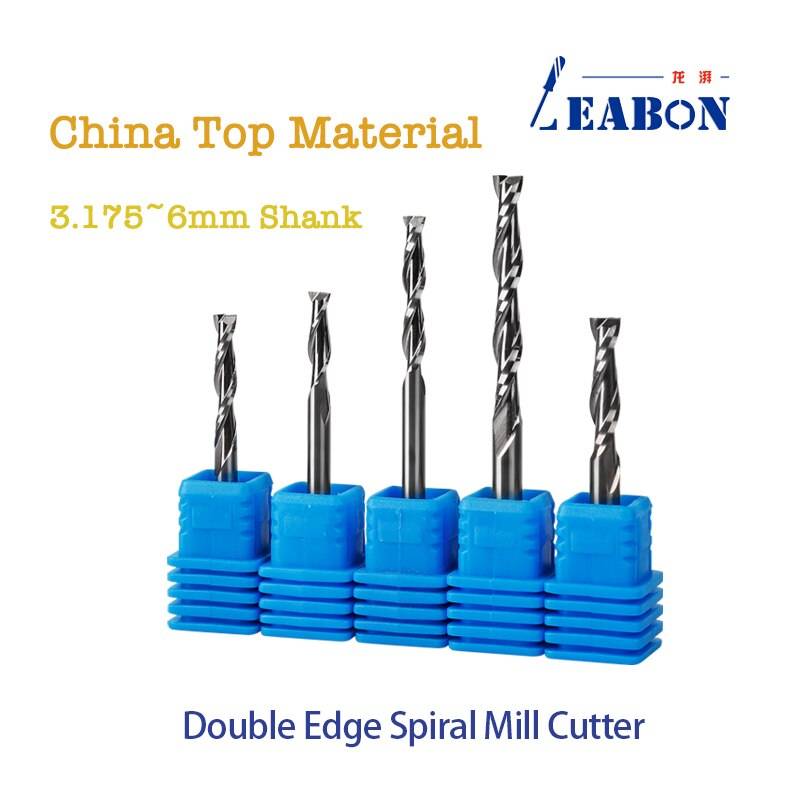

3.175-6mm Shank Double Edge Spiral Router Bit ACP

Leabon double-edge spiral router bit with 3.175 to 6 mm shanks, for cutting aluminium composite panel, acrylic and plastic sheet on CNC routers and engraving machines. The up-cut spiral flutes clear chips fast and leave a clean edge on composite and plastic panels with minimal burr. Available in a range of cutting lengths and head types.

Ships From

Dimensions

Clear

Features and Applicable Machines and Tools:

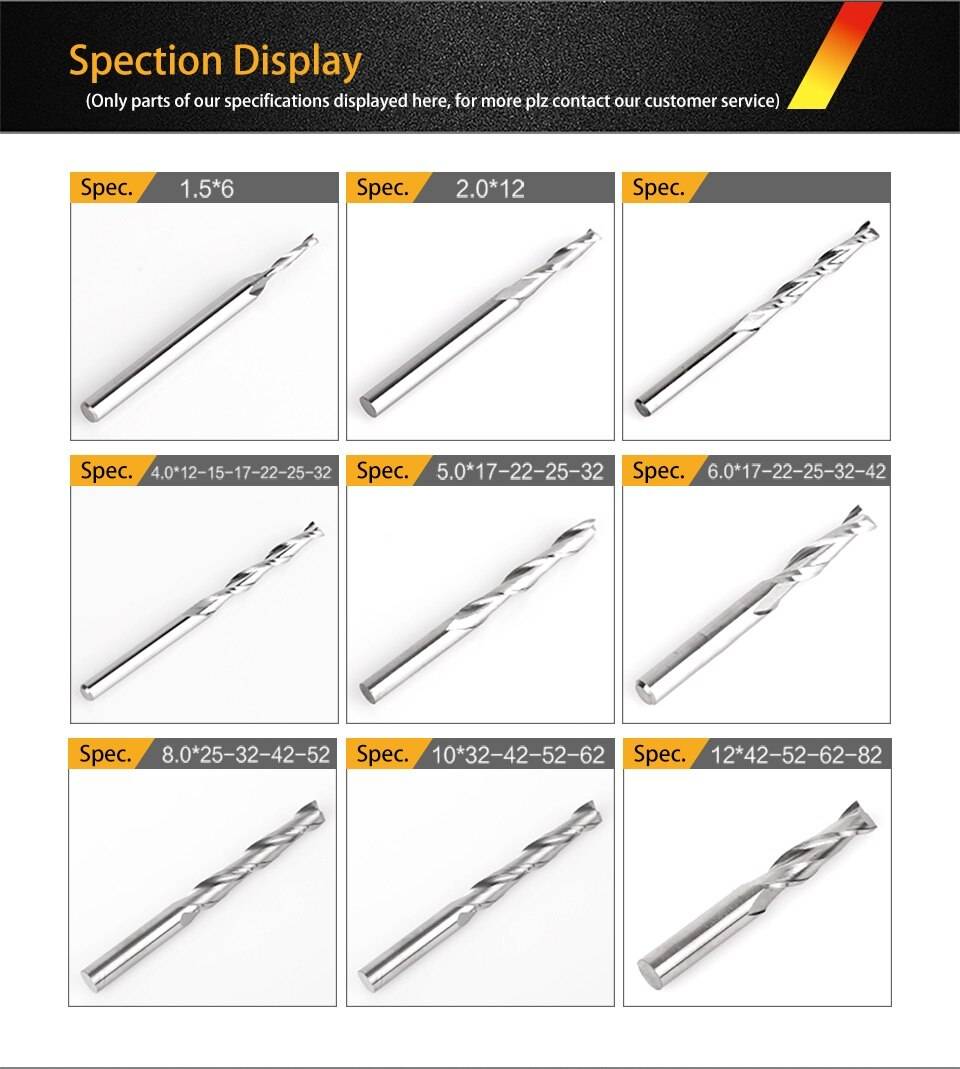

This page shows full series double cutting edge spiral milling cutters, the shank diameter cover from 3.175 to 6mm with varies length. You can also visit our Milling Cutter Category for more other cutting head type and specifications.

Package: 1pc/box. Above price is for 1 package, 1pc.

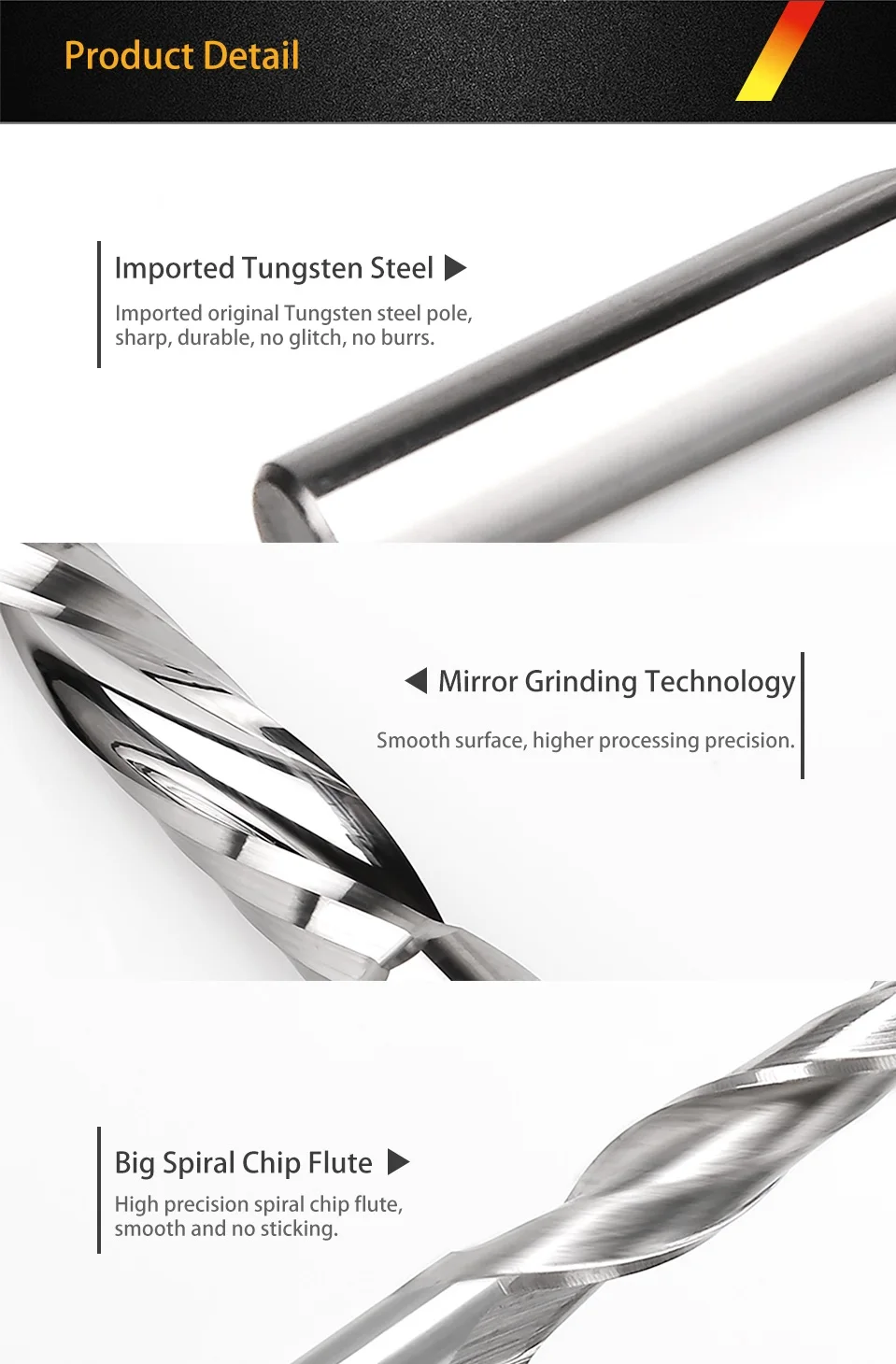

1. Premium imported tungsten steel material.

2. Wear-resistant, with low material build-up on the cutter

3. Cutting edges finished by mirror grinding.

4. High chip-evacuation efficiency.

5. An all-new cutting-edge geometry breaks

through the limits of conventional cutter designs and is

noticeably sharper.

6. Endurance-tested over ten thousand cycles to guarantee edge sharpness and resistance to chipping.

7. Threads machined to tighter tolerance than the original specification, giving a precisely matched spiral and a smoother up-cut / down-cut action.

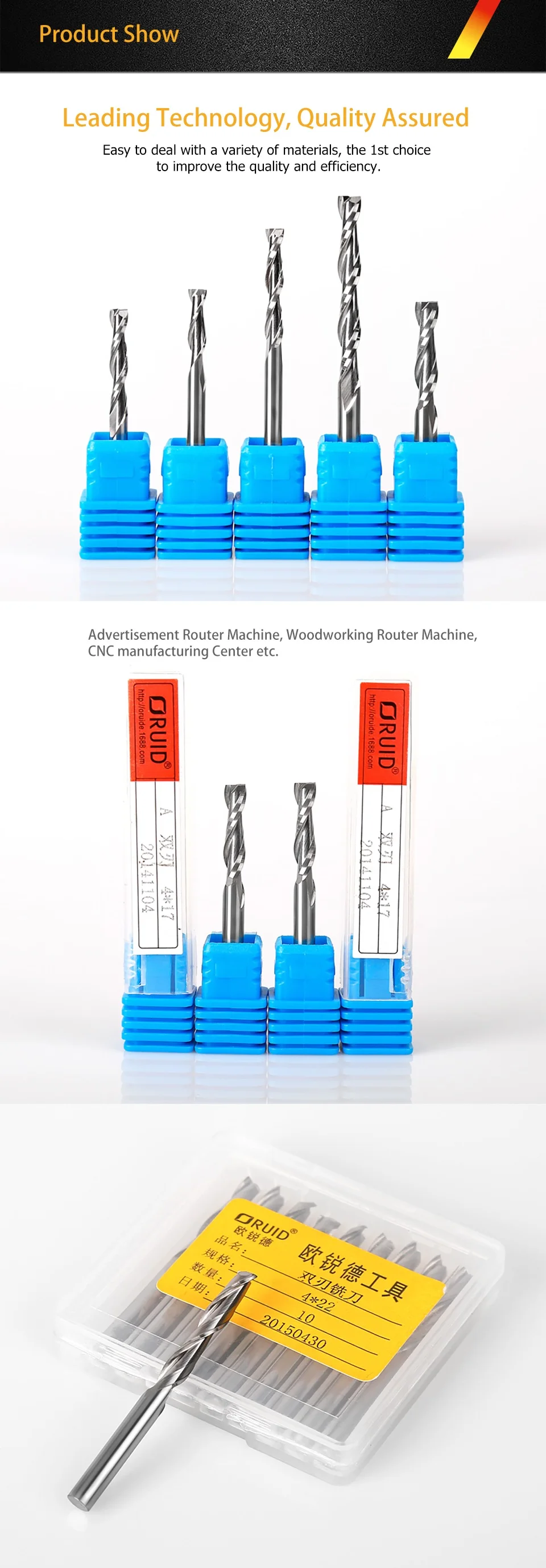

It can be used in advertising routers, woodworking routers, CNC machining centres, hand routers, etc. and can mill ABS, Acrylic, ACP, Wood, MDF, Plywood etc. materials.

Frequently Asked Questions

What applications is this designed for?

What is the standout feature of this product?

Key point: Cutting edges finished by mirror grinding.

Which shank or cutting size is this?

This item is offered in 3.175-6 mm; other sizes can be supplied on request.

Which profile or geometry is this?

Geometry: spiral. Choose the geometry to match the cut you need – the product name states the profile supplied.

Who pays import duties and customs fees?

Prices exclude destination import tax and customs fees, which are the buyer’s responsibility.

Weight	0.06 kg
Ships From	China

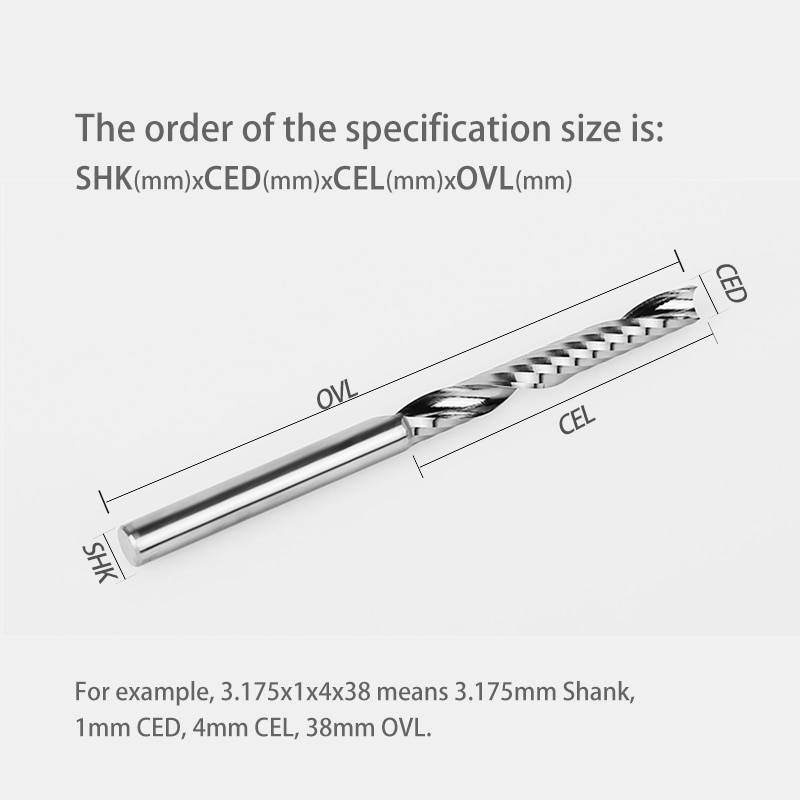

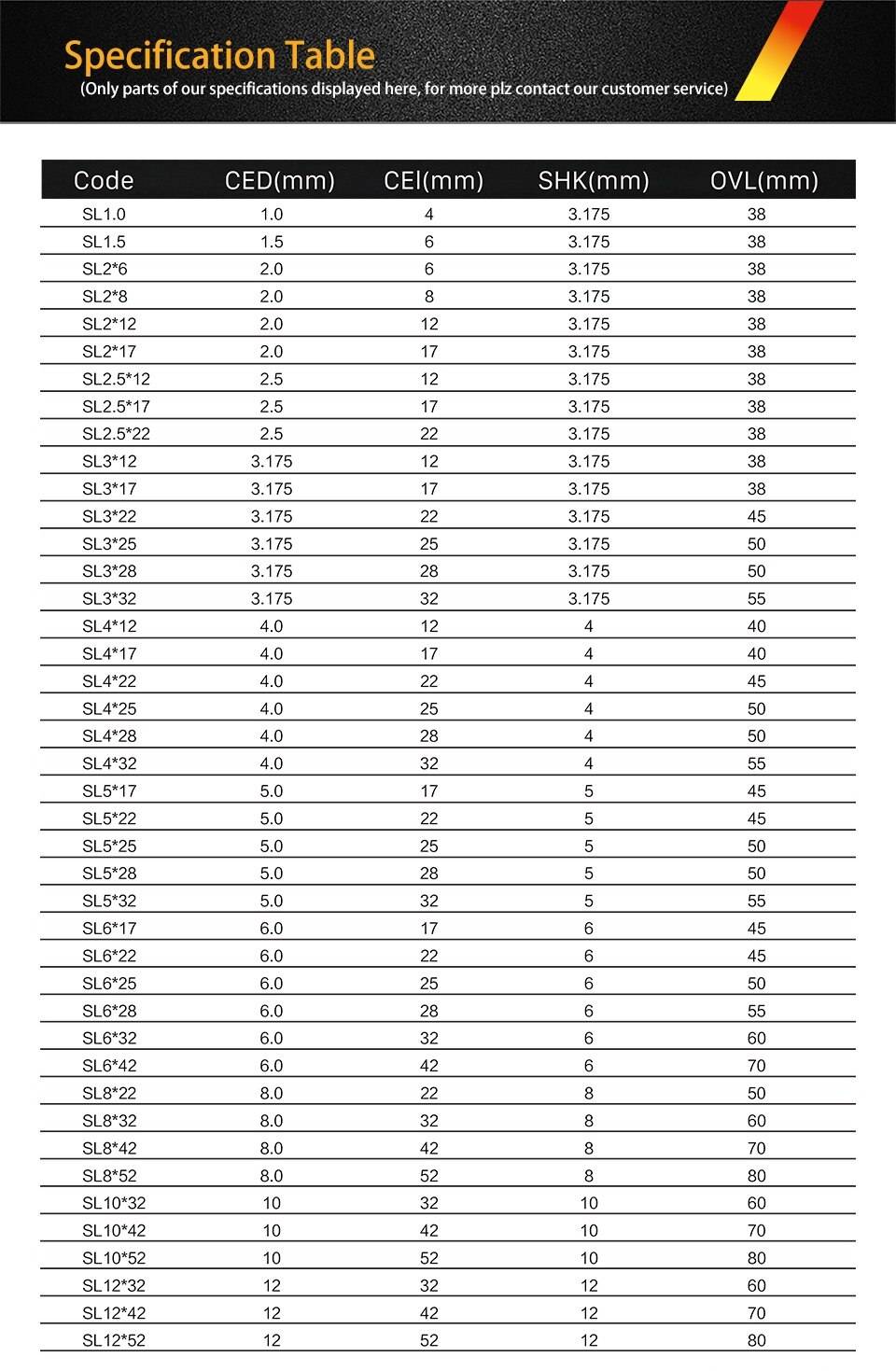

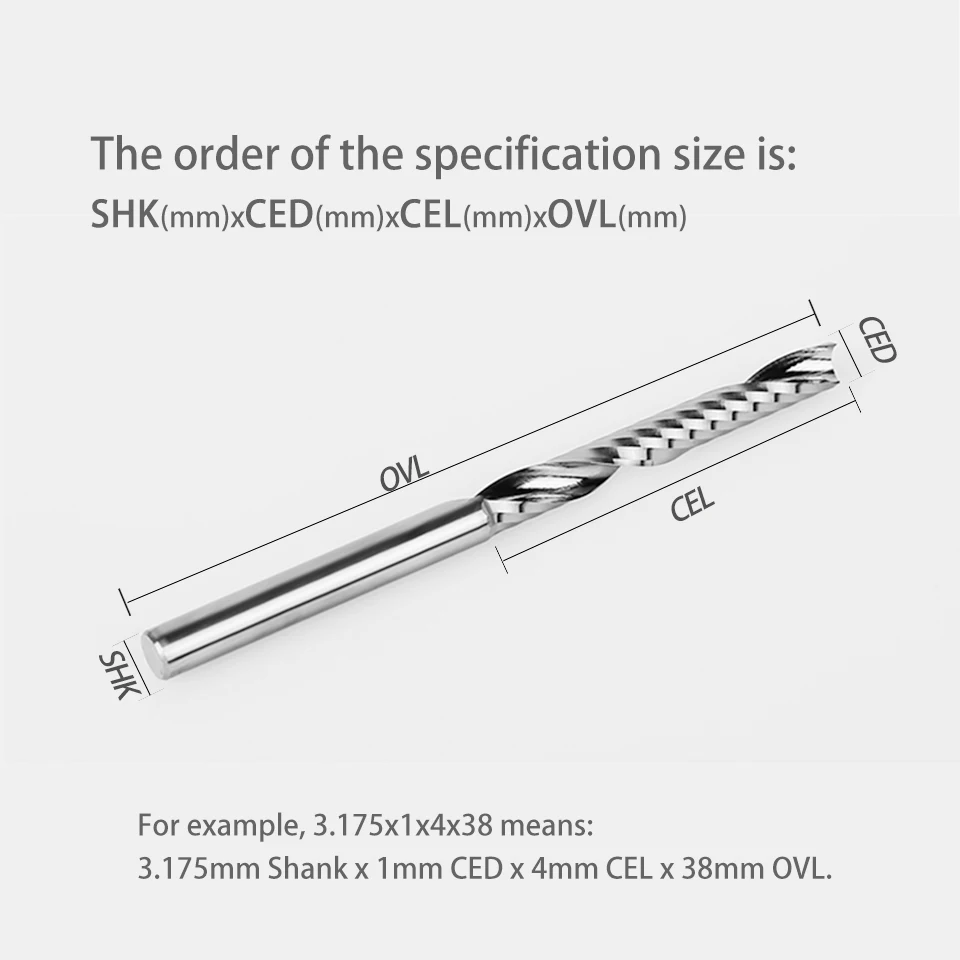

Dimensions	3.175x1x4x38mm, 3.175×1.5x6x38mm, 3.175x2x8x38mm, 3.175x2x12x38mm, 3.175×2.5x12x38mm, 3.175×3.175x12x38mm, 3.175×3.175x17x38mm, 3.175×3.175x22x45mm, 3.175×3.175x25x50mm, 3.175×3.175x28x50mm, 3.175×3.175x32x55mm, 4x4x12x40mm, 4x4x15x40mm, 4x4x17x40mm, 4x4x22x45mm, 4x4x25x50mm, 4x4x28x55mm, 4x4x32x55mm, 5x5x17x45mm, 5x5x22x45mm, 5x5x25x50mm, 5x5x28x55mm, 5x5x32x55mm, 6x6x17x45mm, 6x6x22x45mm, 6x6x25x50mm, 6x6x28x55mm, 6x6x32x60mm, 6x6x42x70mm, 6x6x52x80mm, 6x6x62x100mm
Origin	CN(Origin)
Type	Thread Mills
Overall Length	38~100mm
Model Number	mc0001~mc0044
Diameter	3.175mm 4mm 5mm 6mm 8mm 10mm 12mm
Coating	none
Material	Carbide
Degree	R0.1
