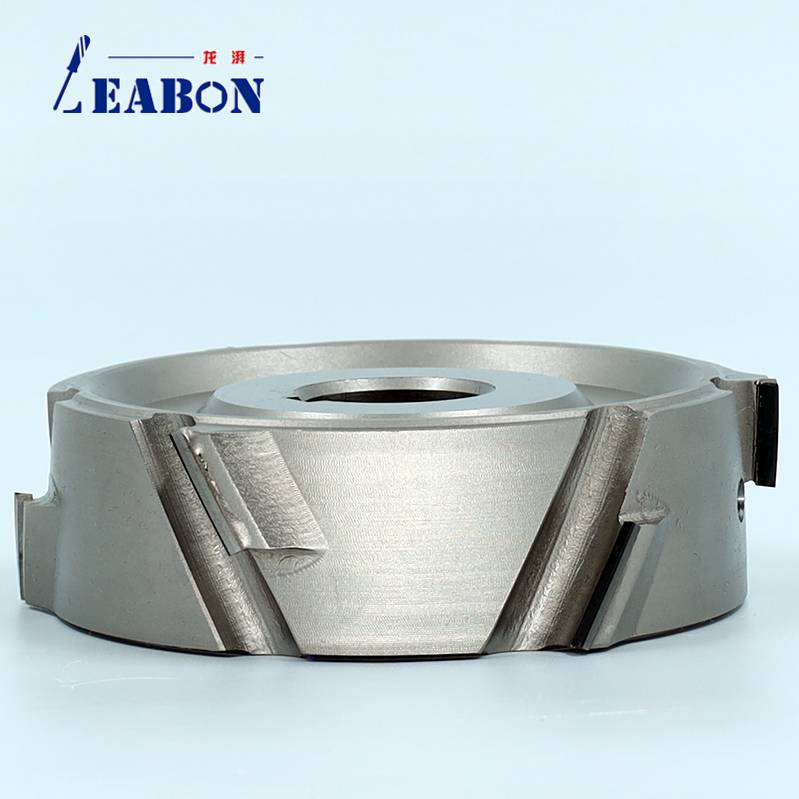

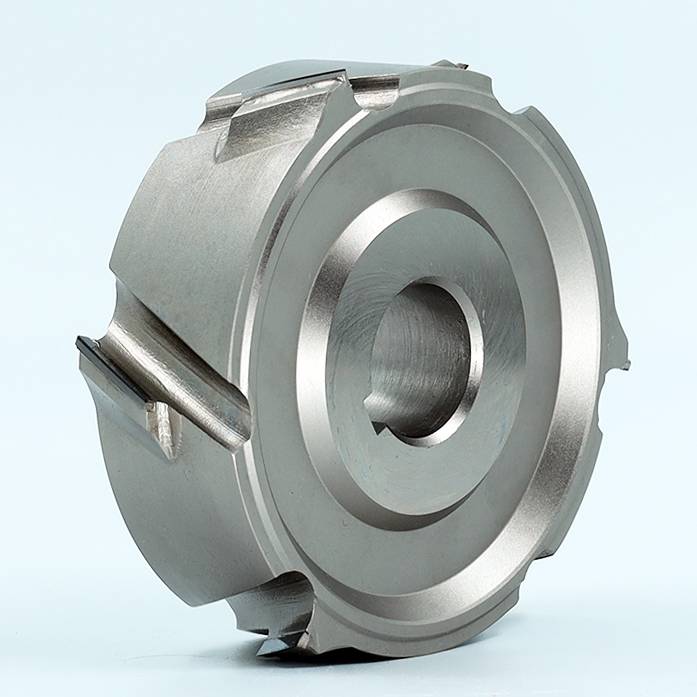

PCD Diamond Pre Milling Cutter for Edge Banding Machine

PCD Diamond Pre Milling Cutter for Edge Banding Machine

Q: What is the minimum order quantity?

Most items are sold as small lots (e.g. 2, 4 or 10 pcs/box). Contact us for bulk and OEM pricing.

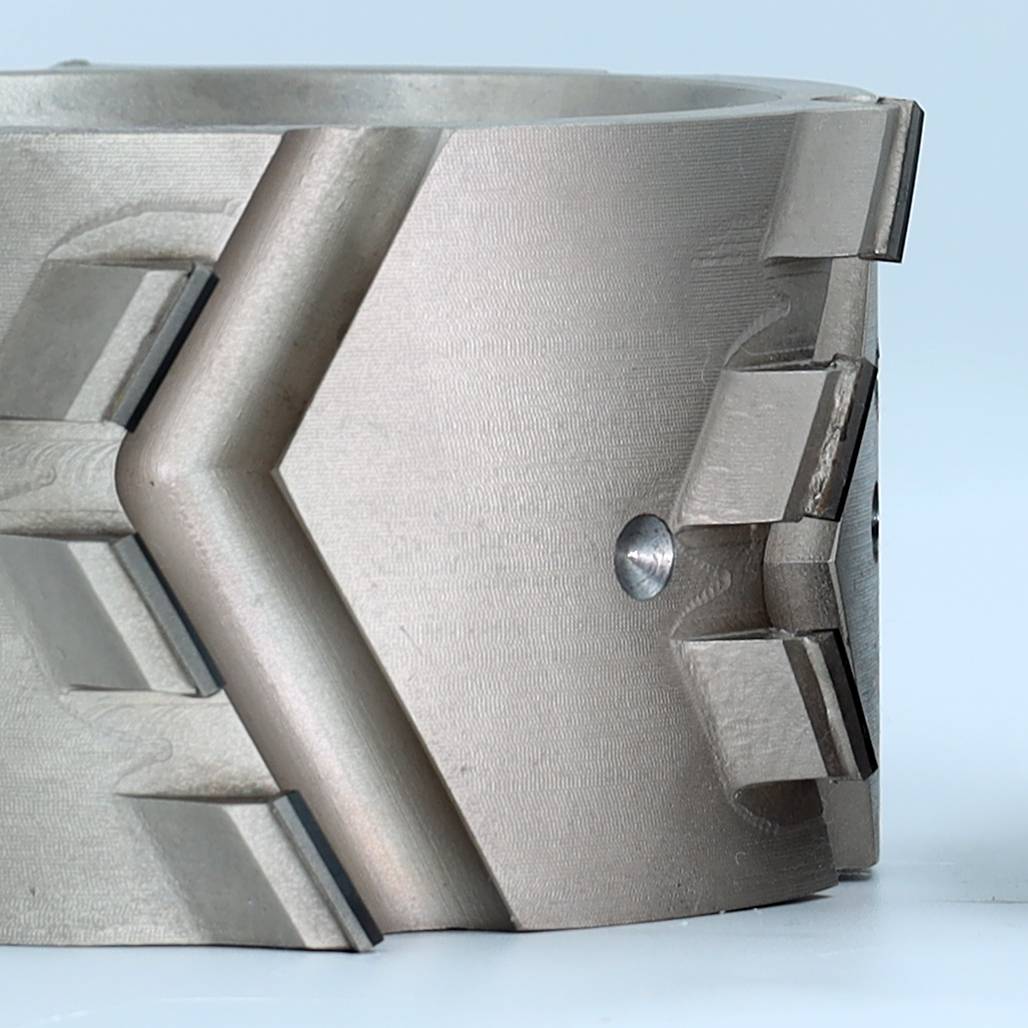

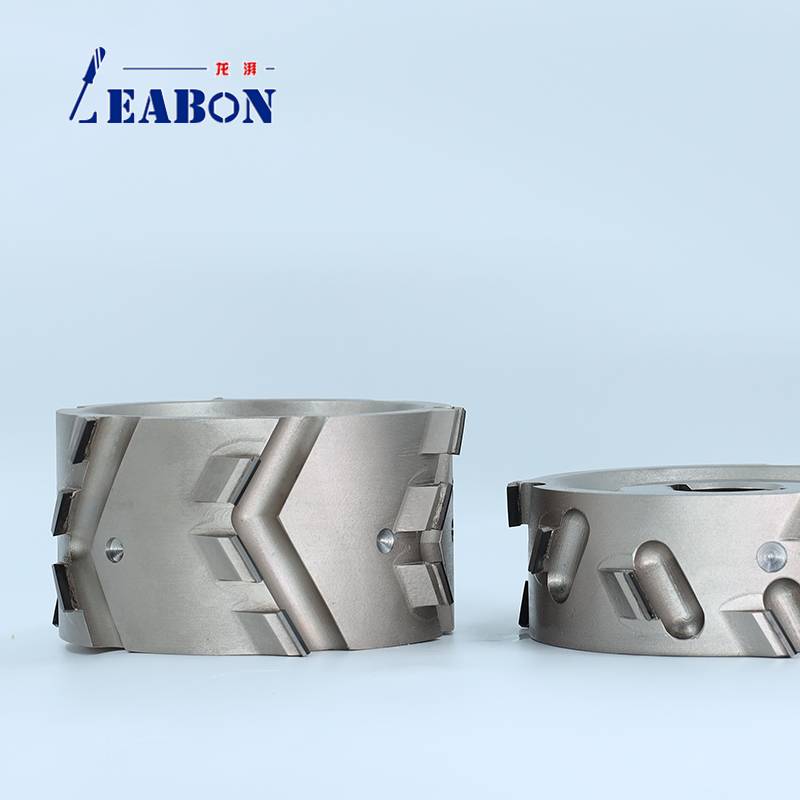

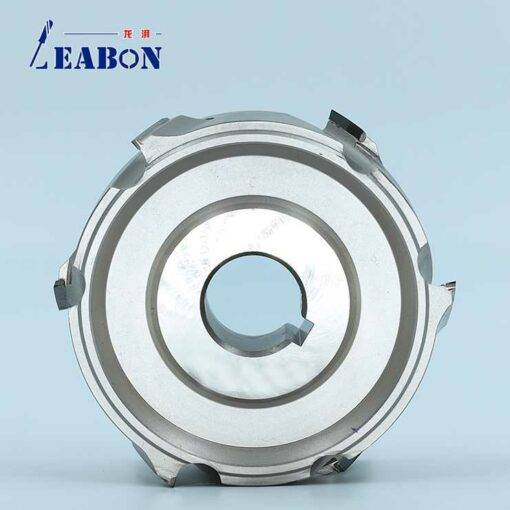

Leabon PCD diamond pre-milling cutter for automatic edge banding machines. It re-cuts the panel edge to remove ripples, burrs and non-square edges left by the panel saw, so edge tape bonds tight with a minimal glue line. PCD-tipped alloy body with 3+3Z cutting edges, 125×30 mm in H35 to H65 heights; other diameters on request.

Parameters

Sales Unit

Clear

The PCD diamond pre-milling cutter in the edge banding process can re-modify the ripple marks, burrs or non-vertical phenomena caused by the panel saw/cutting saw processing to achieve a better edge banding effect. Let the edge banding and the board fit more closely.

Specification

Product Name

PCD Diamond Pre Milling Cutter for Edge Banding Machine

Brand Name

Leabon

Type

Cutter

Color

Silver

Material

PCD&Alloy

Dimension/mm

125*30*H35*(3+3)Z

125*30*H40*(3+3)Z

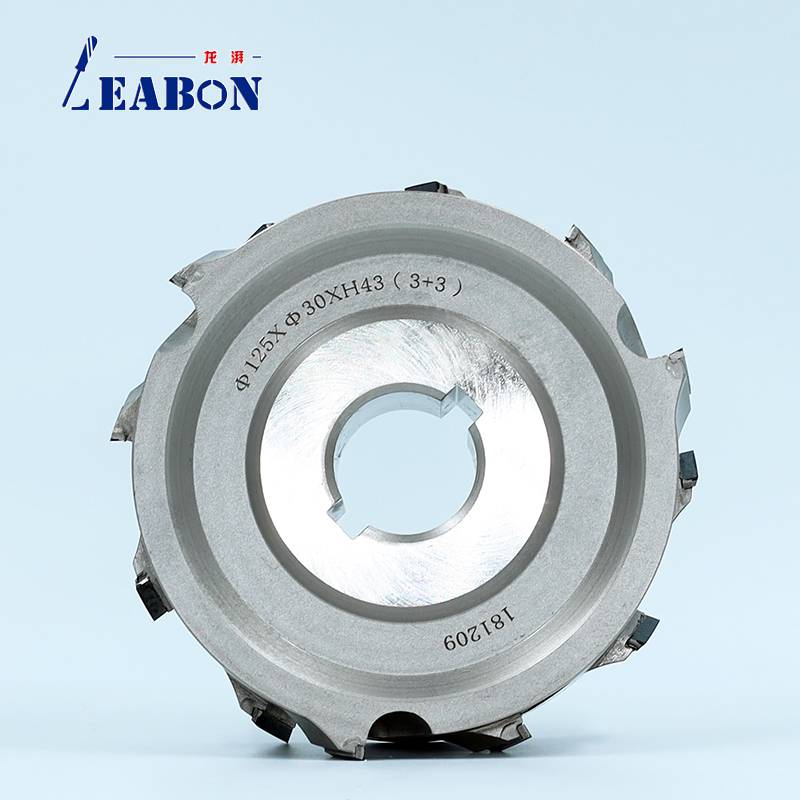

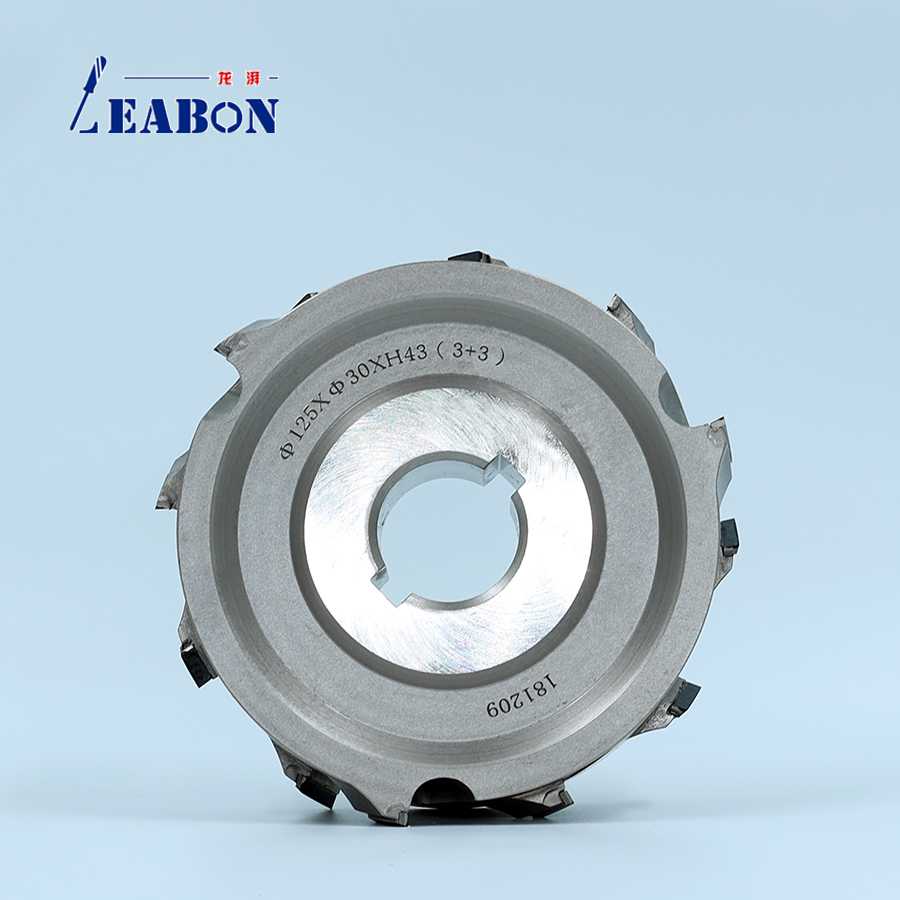

125*30*H43*(3+3)Z

125*30*H50*(3+3)Z

125*30*H65*(3+3)Z

80*20*H35*(3+3)Z

80*20*H50*(3+3)Z

80*20*H65*(3+3)Z

120*30*H43*(3+3)Z

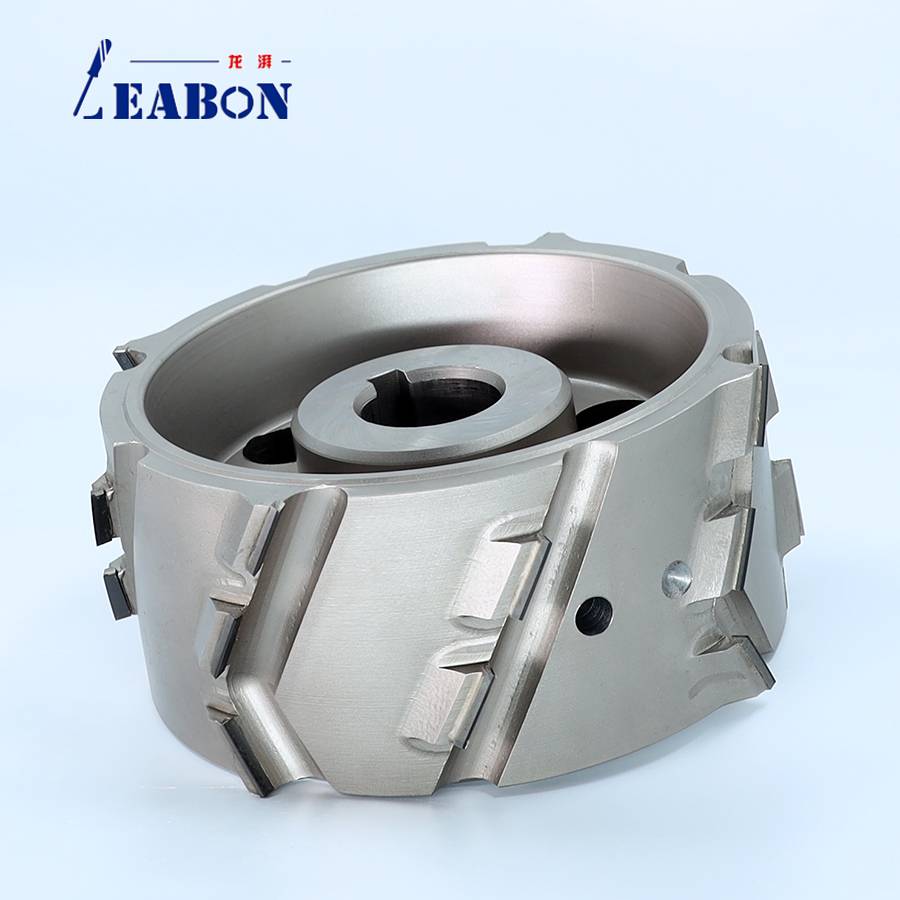

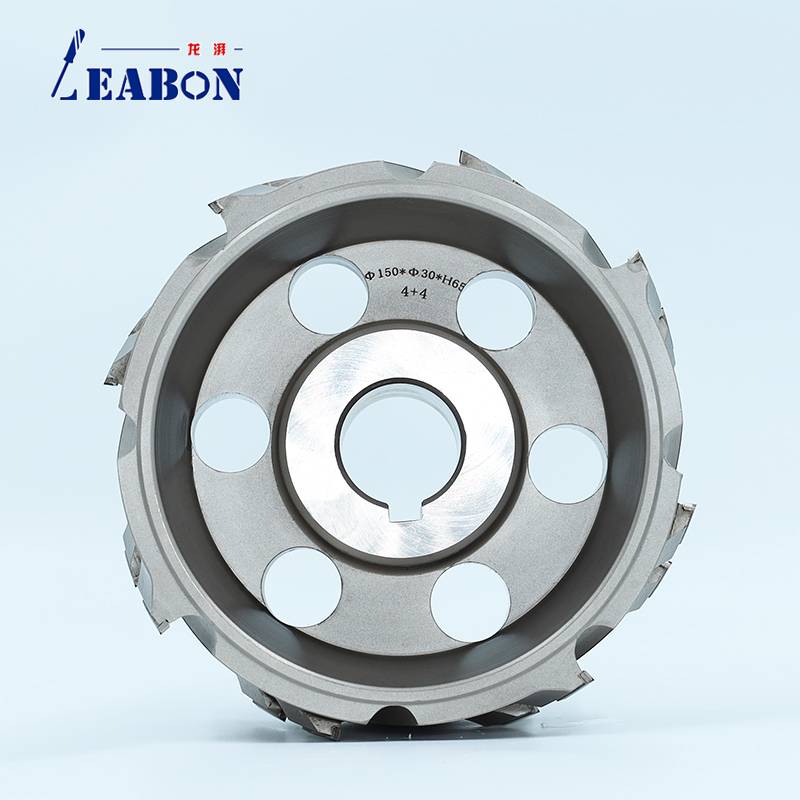

150*30*H65*(4+4)Z

Package

1pc in each package

Product Details

Size

Outer Dia.:80/120/125mm

Inside Hole:20/30mm

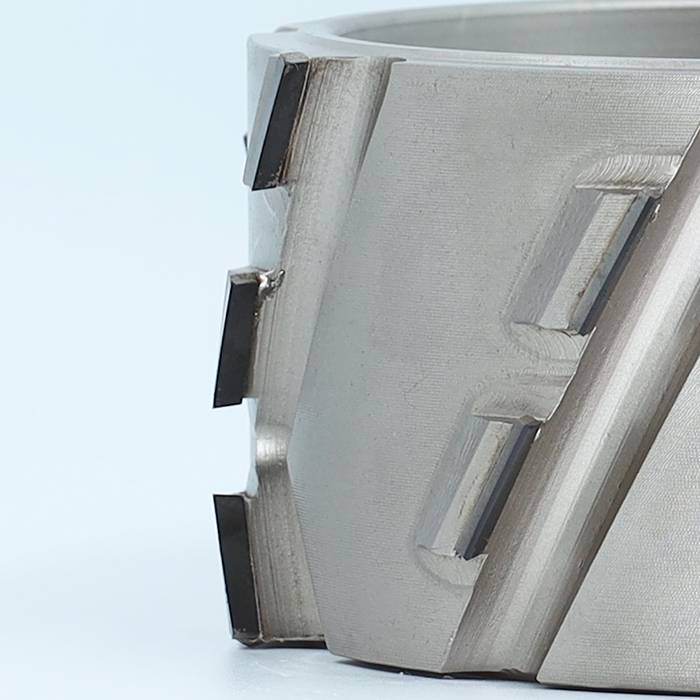

Number of teeth:(3+3)Z

Package

1 psc in one package. Generally packed in a cardboard box.

Material

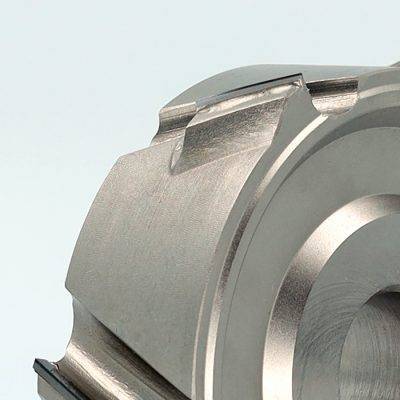

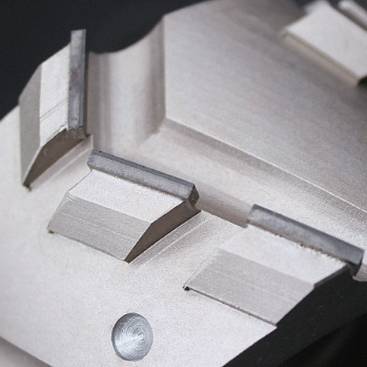

The cutter edge is made of PCD diamond, and the substrate of cutter is made of steel.

You might also need other models

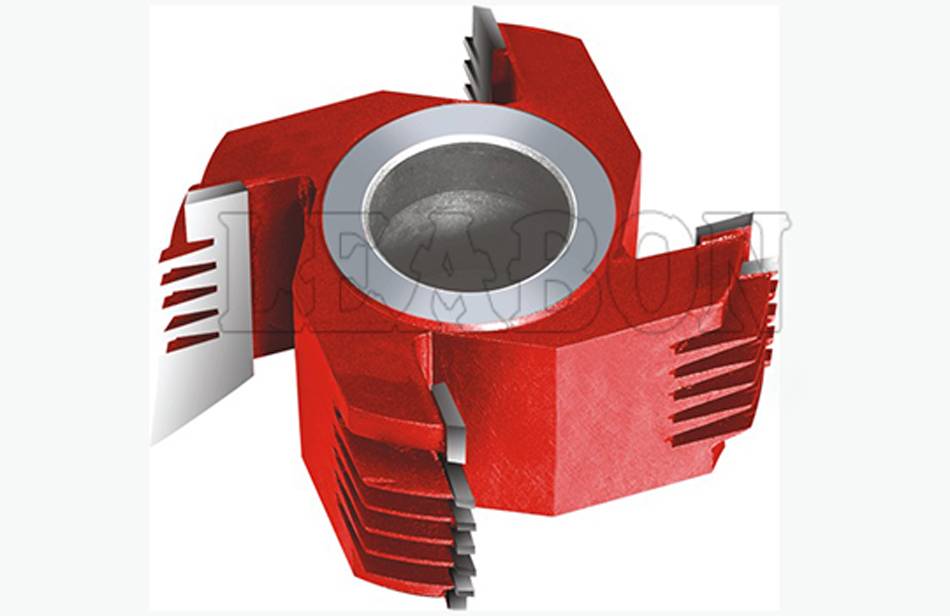

4T Finger Joint Bottom Cutter

1 PC finger joint bottom cutter

Hot sale 5 pcs finger joint cutter.

1 pc Integral alloy finger joint cutter

Features

Applicable Equipment

The PCD pre milling cutter is made of diamond, which effectively solves the shortcomings of fast wear and increases the life of the knife by a hundred times. The diamond premilling cutter has high hardness, high sharpness, strong wear resistance, high precision, good heat dissipation, and long service life. Perfect tooth shape matching, no chipping or blackening.

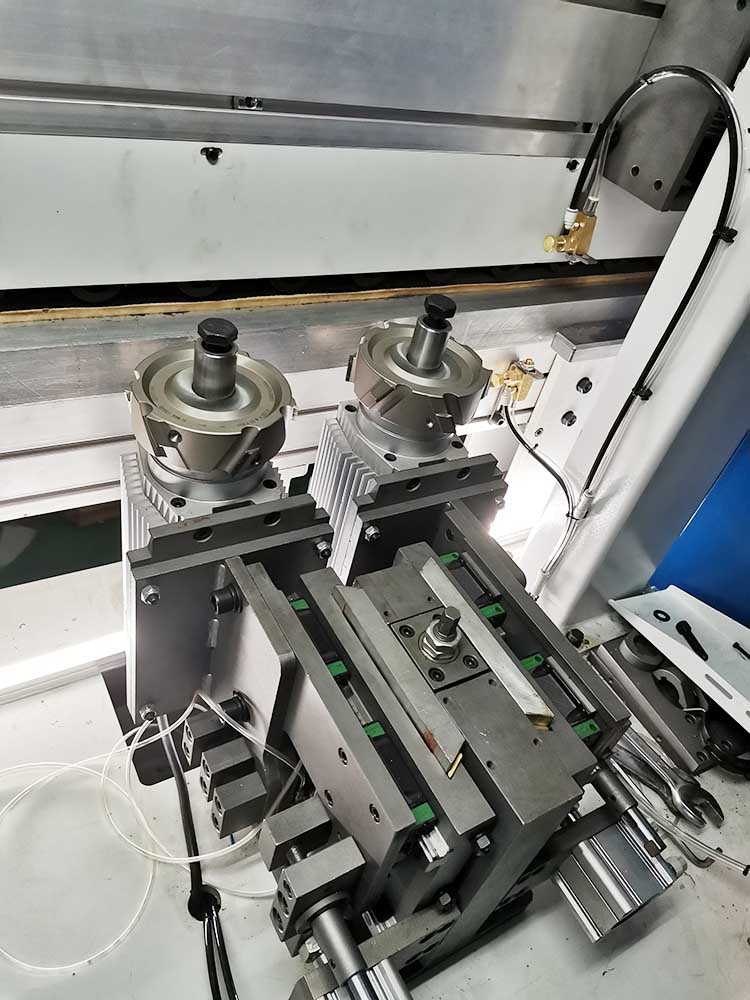

The PCD pre milling cutter is used for edge banding pre-milling. Pre-milling makes the edge band and the plate fit more closely, and the integrity and aesthetics are better.

Frequently Asked Questions

What material and grade do you use?

The pcd diamond pre milling cutter for edge banding machine is made from PCD&Alloy.

What dimensions should I check before ordering?

Available dimensions: 125*30*H35*(3+3)Z. Tell us the size on your machine or drawing and we match it for you.

Which workpieces is this suitable for?

It re-cuts the panel edge before edge banding, removing ripple marks, burrs and non-square edges left by the panel saw so the tape bonds tight.

Which technical points should I check?

Check the bore, height and Z count you need – for example 80 x 20 x H50 x (3+3)Z on the 80 mm body – and confirm the spindle diameter of your machine.

What is the minimum order quantity?

Many items are sold individually or in small lots, and bulk or OEM pricing is available on request. We quote for single pieces, small lots and full production volumes.

Weight	N/A
Model Number	LEABON004
Brand Name	Leabon
Parameters	12530H35(3+3)Z, 12530H40(3+3)Z, 12530H43(3+3)Z, 12530H50(3+3)Z, 12530H65(3+3)Z, 8020H35(3+3)Z, 8020H50(3+3)Z, 8020H65(3+3)Z, 12030H43(3+3)Z, 15030H65(4+4)Z
Sales Unit	Packages(1pc cutter in each package)
