How do I choose the right edge bander spare part?

Measure the old part (length × width × thickness, bore, radius or tooth count) and match it to the product specs, or send us a clear photo — we confirm the fit before shipment.

Are HOMAG and SCM / Biesse parts interchangeable?

Generally no — each brand uses different dimensions. Shop by your machine brand above; we also supply cross-brand equivalents on request.

Can edge bander parts be customized?

Yes. Leabon accepts non-standard sizes and materials (TCT or PCD) and can produce to your drawing or sample.

What is the minimum order quantity?

Most items are sold as small lots (e.g. 2, 4 or 10 pcs/box). Contact us for bulk and OEM pricing.

Do you provide technical support for fitting?

Yes — send your machine model and the part you need, and our team will help you select the correct replacement.

Filter

New

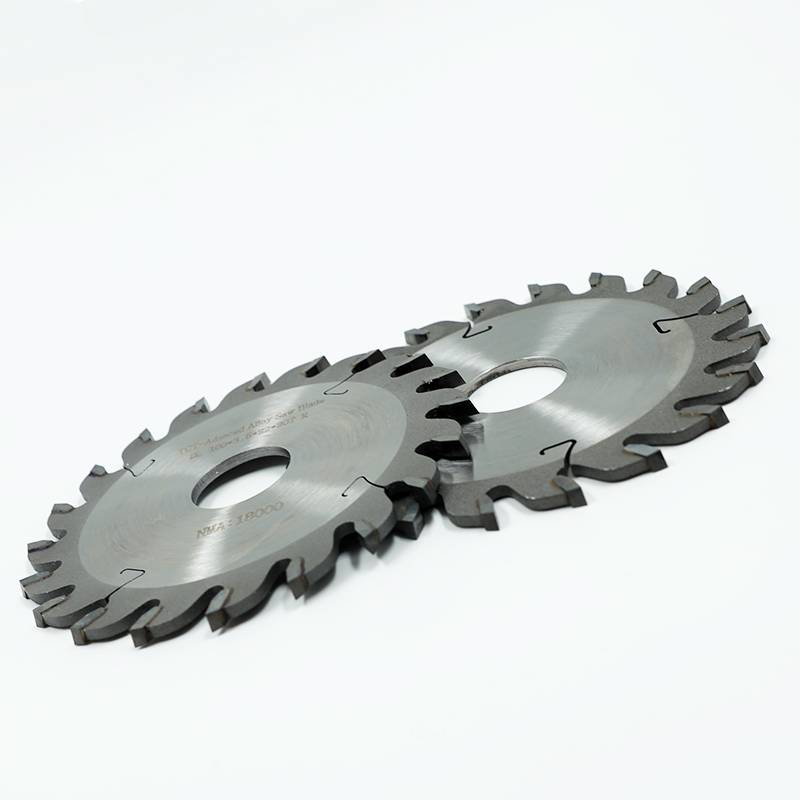

End trimming saw blade for edge banding machine

Saw Blade for Edge Banding Machine End Trimming

Leabon TCT circular saw blade for edge banding machine end trimming, used in furniture manufacturing and wood processing. The tungsten carbide teeth cut the overhanging edge tape square at the panel ends, giving a clean end trim on PVC, ABS and melamine edges. Made from alloy steel with TCT tips; confirm your machine model before ordering.

Parameters

Sales Unit

Clear

Description
Additional information

The TCT circular saw blade for edge banding machine trimming is widely used in furniture manufacturing, wood processing industries.

Specification

Product Name TCT Circular Saw Blade for Edge Banding Machine Trimming
Brand Name Leabon
Type Saw Blade
Color Silver
Material Alloy
Dimension/mm
104*22*30T
100*22*20T R
100*22*20T L
Package 1pc in each package

Product Details

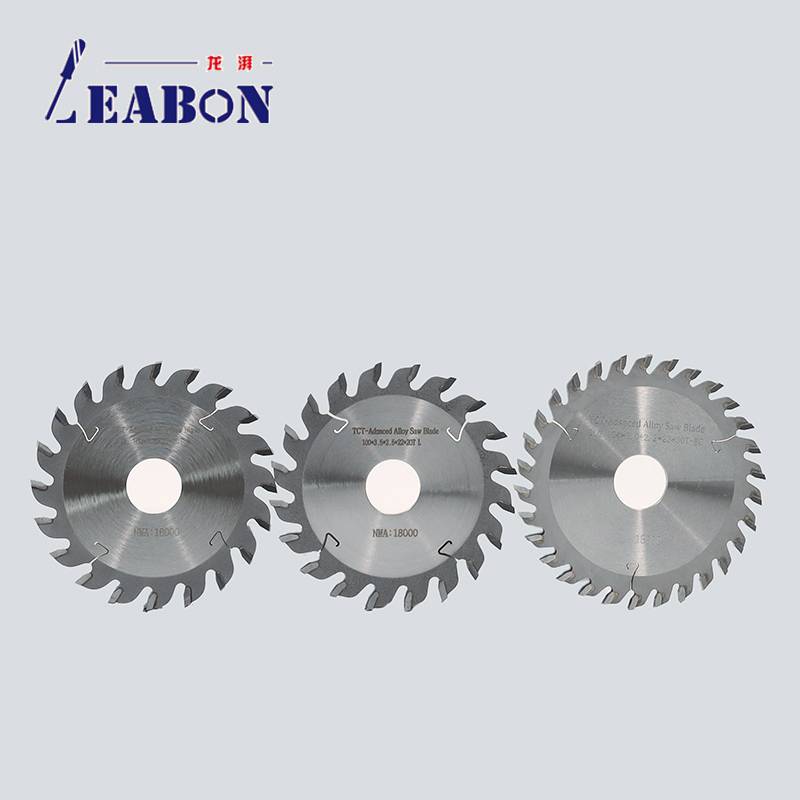

Size

Outer Dia.:100mm/104mm

Inside Hole:22

Number of teeth:20/30

Package

1 psc in one package. Generally packed in a cardboard box.

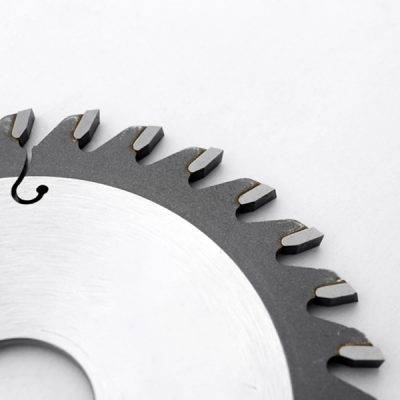

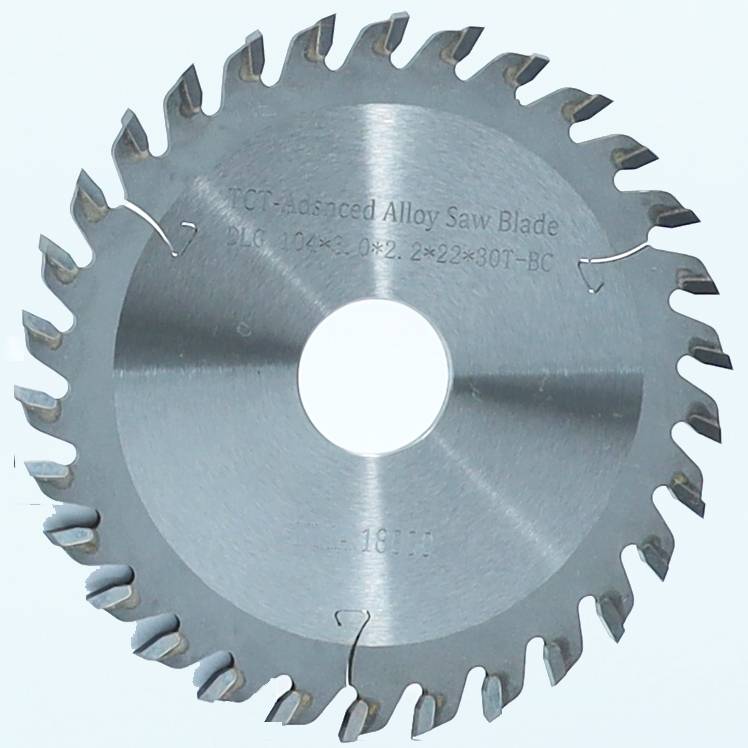

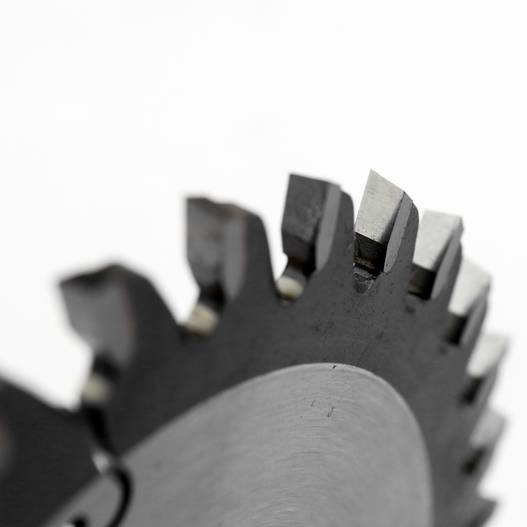

Material

The cutter head of blade is made of hard alloy material, and the substrate of blade is made of steel.

You might also need other models

4T Finger Joint Bottom Cutter

1 PC finger joint bottom cutter

Hot sale 5 pcs finger joint cutter.

1 pc Integral alloy finger joint cutter

Features

Applicable Equipment

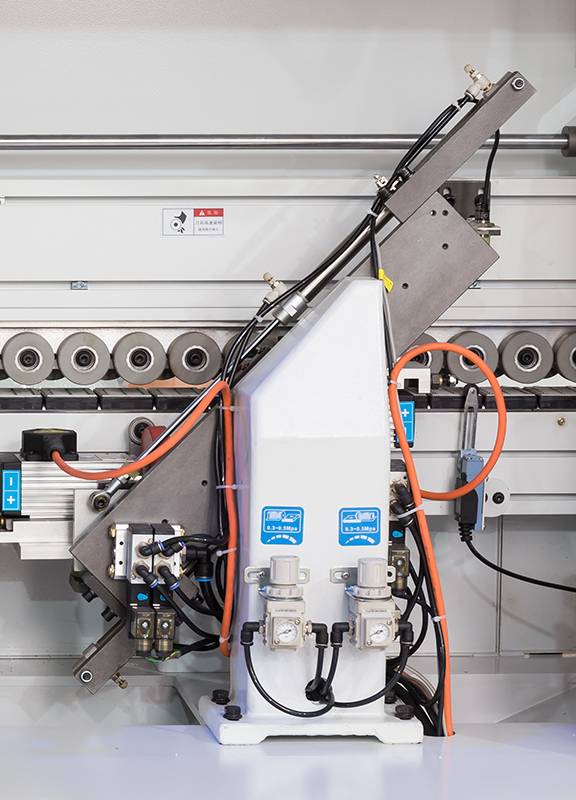

The TCT circular saw blade for edge banding machine end trimming is used to cut the belt before and after the edge banding machine-the function of the full-head and the tail and widely used in furniture manufacturing, wood processing industries.

Frequently Asked Questions

Which edge bander station uses this blade?

It is the end-trimming / corner-rounding station blade on automatic edge banding machines.

What materials does it trim?

PVC, ABS and melamine edge banding as well as thin wood veneer on panel edges.

What sizes are available?

Available dimensions: 104*22*30T. Tell us the size on your machine or drawing and we match it for you.

What applications is this designed for?

It cuts the edge tape at the head and the tail of the panel on edge banding machines, and is widely used in furniture manufacturing and wood processing.

What is the standout feature of this product?

The cutter head is hard alloy and the substrate is steel, giving clean, square end cuts with long service life.

Weight	N/A
Model Number	LEABON003
Brand Name	Leabon
Parameters	100223.520T R for Nanxing, 100223.520T L for Nanxing, 104223.0*30T for KDT
Sales Unit	Packages(1pc cutter in each package)
